Power Steering Pump: Disassembly

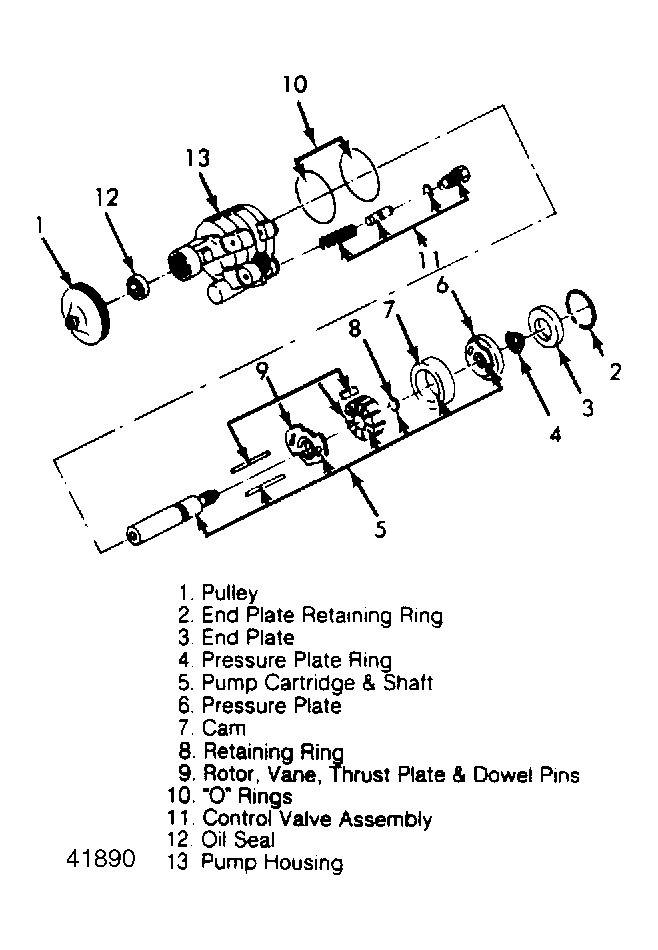

Remove pulley, end plate retaining ring, end plate, pressure plate spring, pump cartridge and shaft. Remove pressure plate, cam, retaining ring, rotor, vane thrust plate and dowel pins. Remove "O" rings, control valve assembly, oil seal and pump housing. See Fig 1 .
