Power Steering Gear: Notes

NOTE: Avoid clamping steering gear in vise by power cylinder portion. Internal damage to cylinder may result.

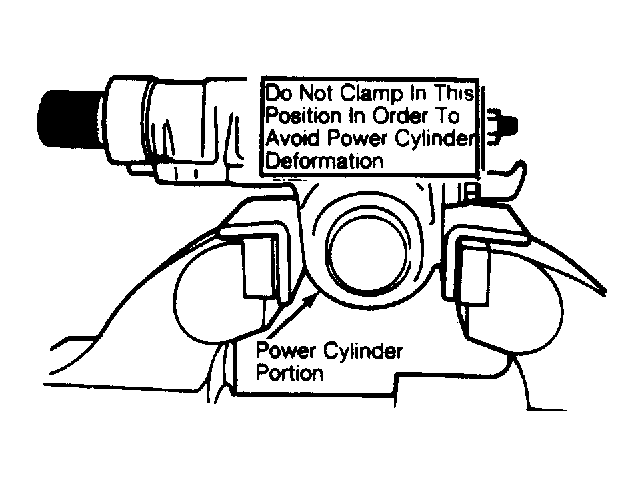

Fig 1: Incorrect Clamping of Power Steering Gear Clamp the steering gear by the sector shaft portion to prevent damage.
G50533
