Control Units

CONTROL UNITS LOCATION

Component Location

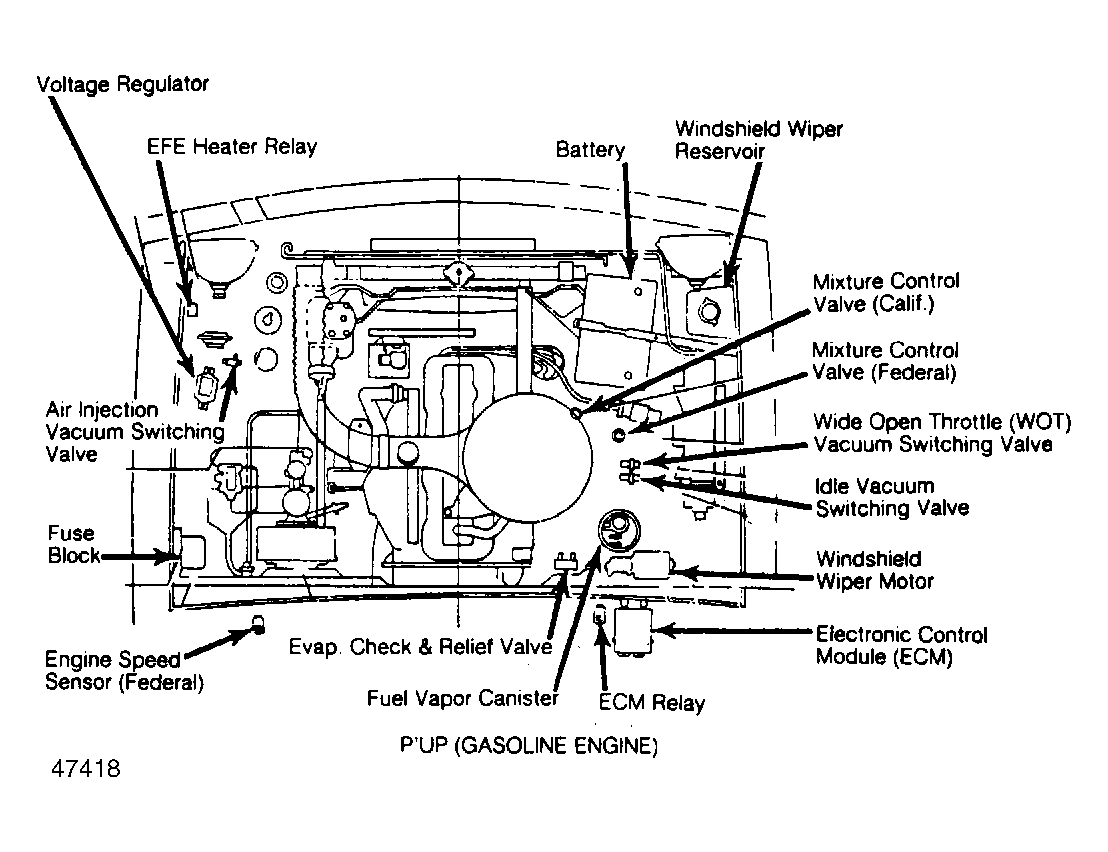

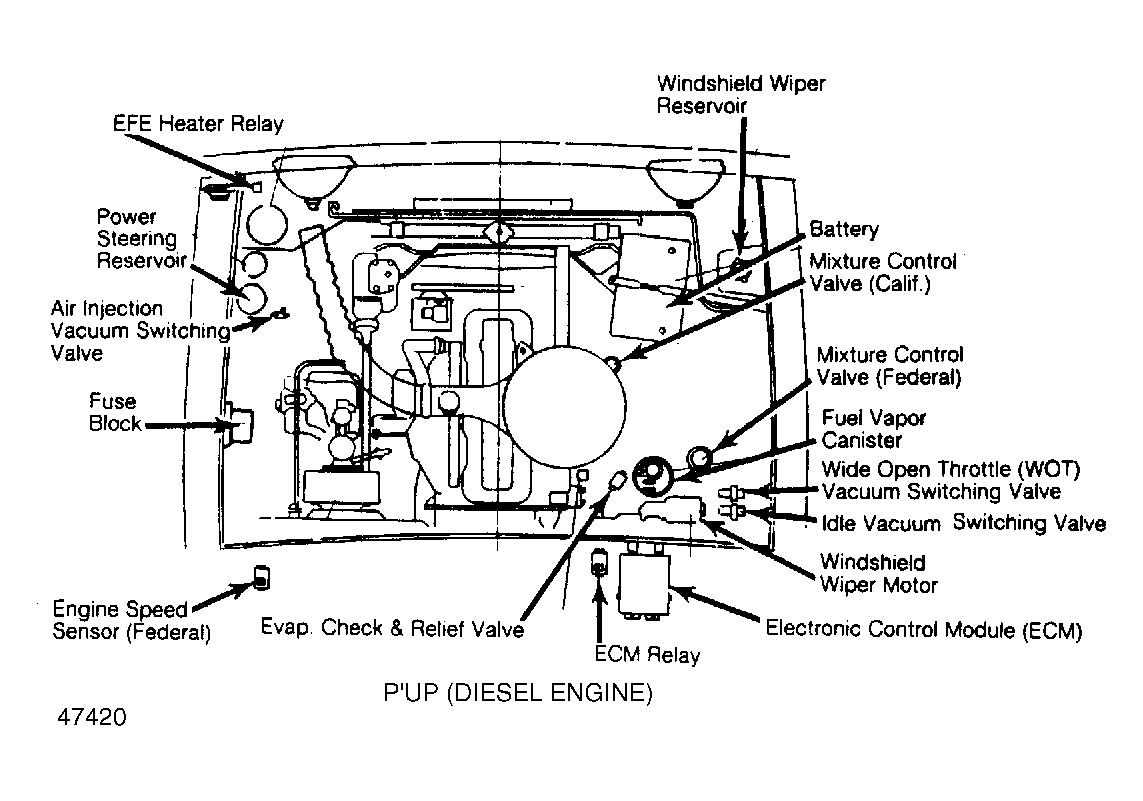

Electronic Control Module (ECM - Calif.) Under right side of dash, behind glove box. See Figure & Figure .
Glow Plug Timer/Control Unit Under left side of dash, on driver's kick panel. See Figure .
