P'UP (LS Model)

Apply battery voltage between terminals No. 2 and 6. SeeFig 1 . Voltmeter reading should be 11-13 volts. Disconnect battery. Connect ohmmeter and measure resistance as specified. See COMBINATION METER RESISTANCE  table.

COMBINATION METER RESISTANCE

Terminals Resistance (Ohms)
2-5 260
2-6 200
5-6 124

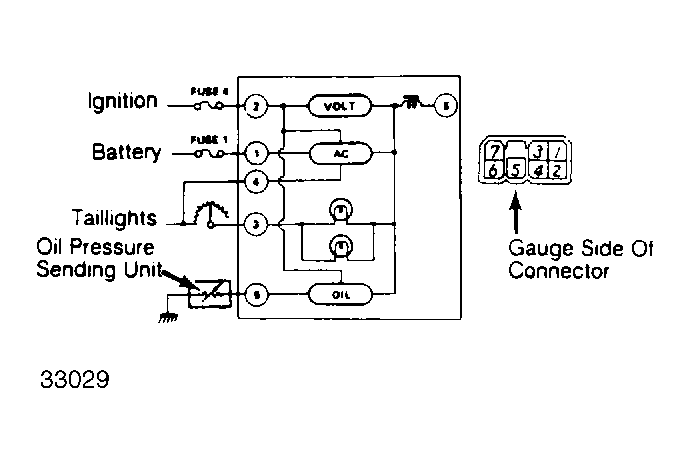

Fig 1: Combination Meter Terminal Identification
G33029Courtesy of ISUZU MOTOR CO.
