Service Indicator & Warning Lights: Notes

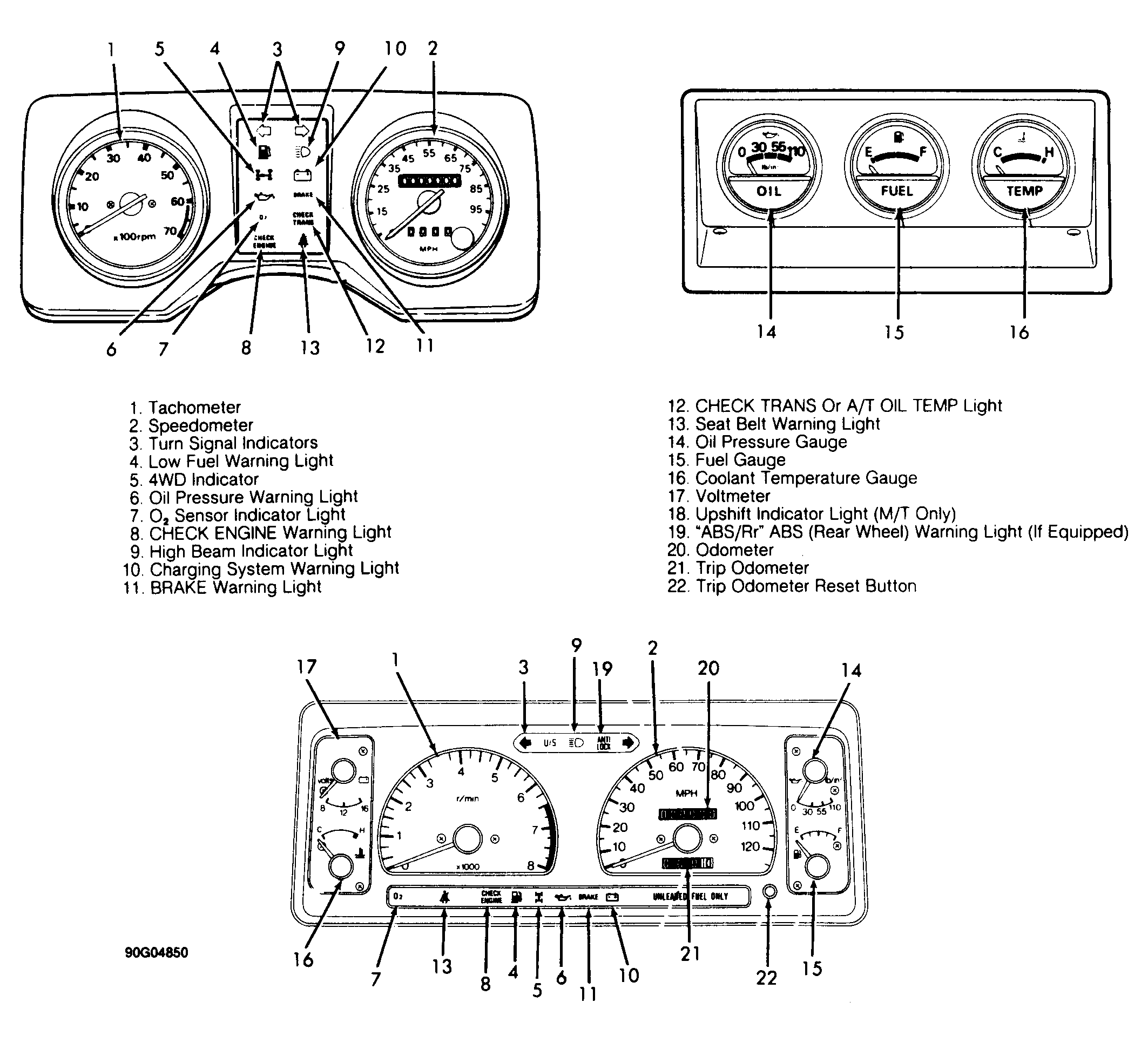

Fig 1: Dash Gauges & Warning Lights
G90G04850Courtesy of ISUZU MOTOR CO.
