Chart 10, Trouble Code 21 Idle Switch Circuit Open Or Wot Switch Circuit Shorted

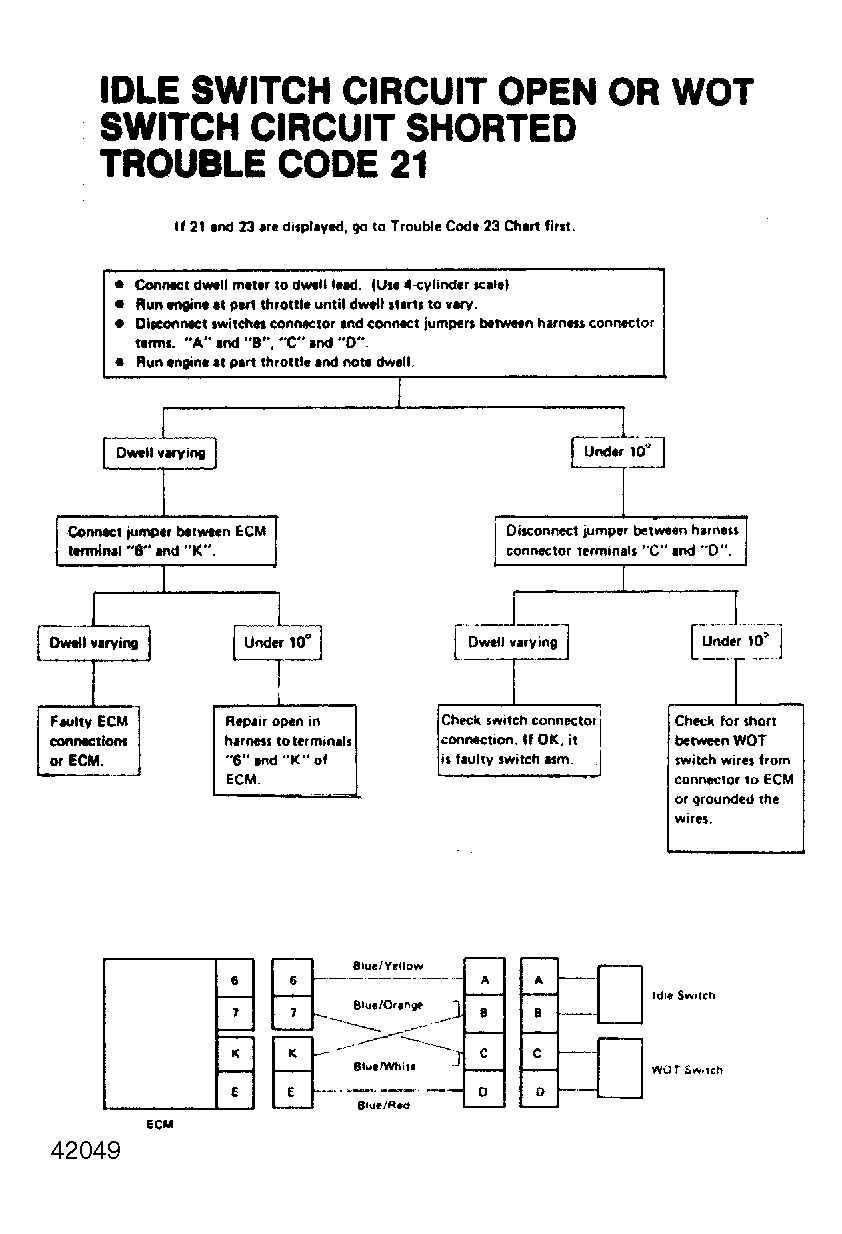

Fig 1: Chart 10

G42049
