Circuit Testing
Reconnect harness to coolant temperature sensor. Unplug ECU connectors at ECU. Check continuity of circuit as indicated in table. If resistance are incorrect, repair or replace harness.

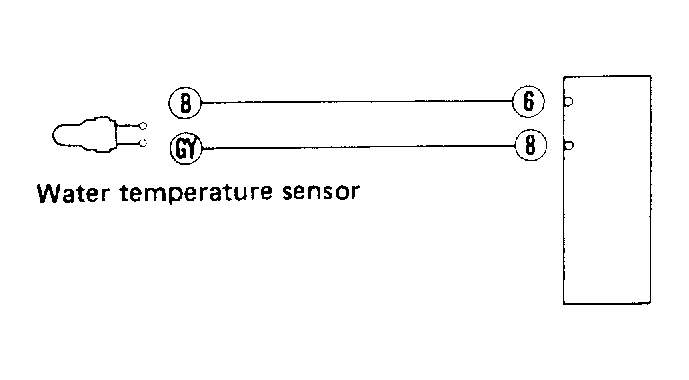

TESTING COOLANT TEMPERATURE SENSOR CIRCUIT
| Trouble Code | ECU Connector Terminal No.; Test Pointt | Resistance (Ohms) |
|---|---|---|
| 14 | 8; B | Infinity |
| 14 | 8; Ground | Infinity |
| 15 or 16 | 8; GY | 0 |
| 15 or 16 | 6; B | 0 |
| 15 or 16 | 6; Ground | Infinity |
