Clutch Assembly: Removal
- Disconnect negative battery cable. From inside of vehicle, remove gear shift knob. Remove boot cover assembly from shift lever. Remove console assembly. Raise and support vehicle. Drain transmission oil. Remove front exhaust pipe assembly.
- Remove 4 front drive shaft flange mount bolts. Remove front drive shaft. Remove speedometer cable assembly. Remove slave cylinder, and wire to vehicle frame.
- Remove cover under transmission case. Position jack under transmission. Lower transmission slightly. Remove bolts retaining shifter quadrant cover to transmission case. Disconnect wiring from transmission.

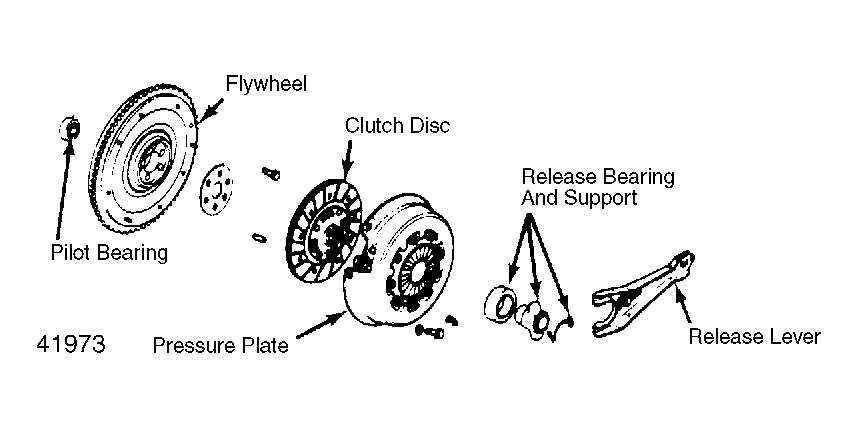

- Remove transmission mount bolts. Lower transmission from vehicle. Ensure starter is moved forward to prevent it from falling when mount bolts are removed. Index mark clutch assembly to flywheel for reassembly reference. Remove clutch assembly. See Fig 1
.
