Component Testing: Voltmeter

Measure resistance between "IG" and "E" terminals of voltmeter connector. SeeFig 1 . Resistance should be about 307 ohms. If reading is not to specification, replace gauge.

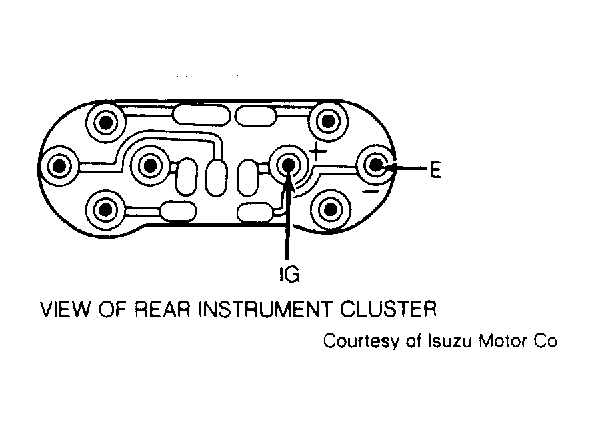

Fig 1: Impulse Voltmeter Terminal Locations
G64973Courtesy of ISUZU MOTOR CO.
