Temperature Gauge

Using an ohmmeter, check resistances across temperature gauge terminals. See TEMPERATURE GAUGE RESISTANCE  table. If resistances are not correct, replace gauge. SeeFig 1 .

TEMPERATURE GAUGE RESISTANCE

Terminal Position Ohms
IG-U 88
IG-E 197
U-E 109

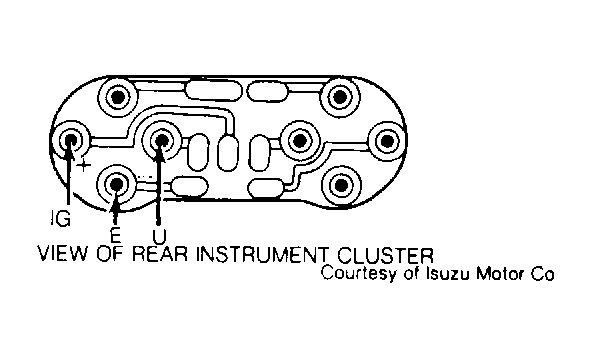

Fig 1: Impulse Temperature Gauge Terminal Locations
G64969Courtesy of ISUZU MOTOR CO.
