Fuel Gauge

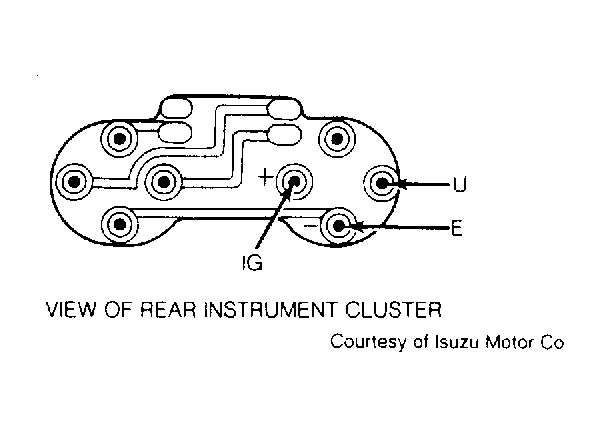

Connect ohmmeter to fuel gauge terminals. SeeFig 1 . Resistance between "IG" and "U" terminals should be about 260 ohms. Resistance between "IG" and "E" terminals should be about 200 ohms. Resistance between "U" and "E" terminals should be about 109 ohms. If resistance is not as specified, replace gauge.
