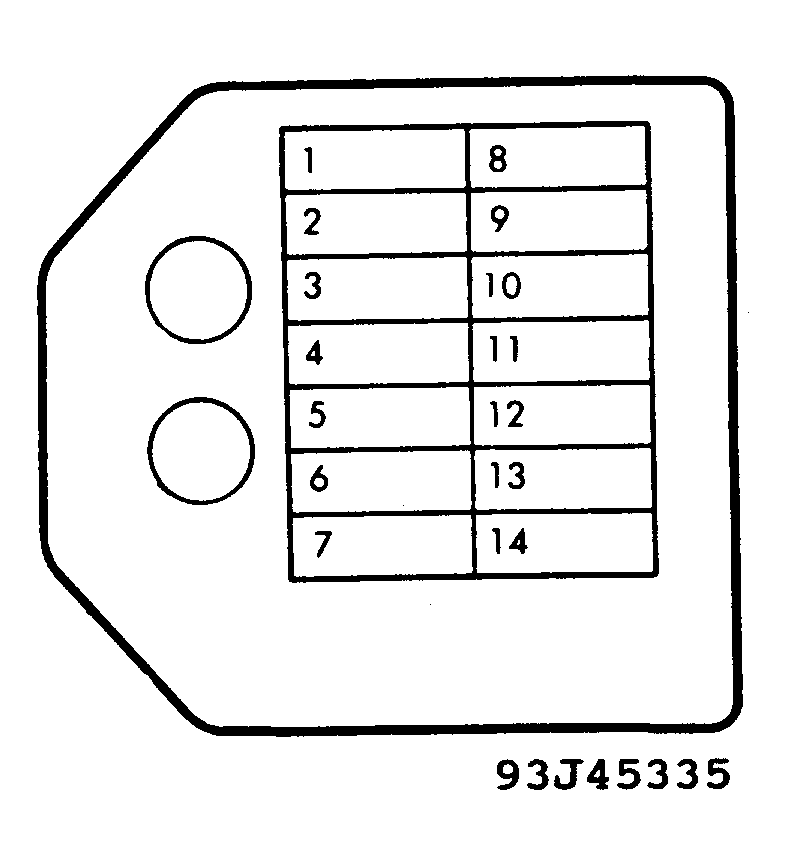

Dash Fuse Box Identification (1983-87)
Courtesy of ISUZU MOTOR CO.
- 1 - 10 Amp
Taillights, Stoplights, Cruise Control (1983-84)
- 2 - 15 Amp
Hazard Warning Light, Door Lock Relay, Anti-Theft
- 3 - 10 Amp
Dome Lights, Spot Lights, Step Light, Luggage Compartment Light, Key & Light Warning Buzzer, Anti-Theft Controller
- 4 - 5 Amp
I-TEC System, A/C Mode Control, Radio & Digital Clock
- 5 - 15 Amp
Rear Defogger
- 6 - 10 Amp
Air Conditioner, Temp & Blower Controller
- 7 - Blank
- 8 - 20 Amp
Cigarette Lighter & Radio
- 9 - 15 Amp
Front Wiper & Washer, Anti-Theft Controller
- 10 - 15 Amp
Rear Wiper & Washer, Auto Mirror, Anti-Theft Controller
- 11 - 20 Amp
Power Window
- 12 - 20 Amp
Power Window
- 13 - 15 Amp (7.5 Amp in 1987)
Back-Up Lights, Turn Signal Lights, O/D Cancel (A/T), Rear Defogger & Cruise Control
- 14 - 15 Amp
Fuel Tank Sending Unit, Digital Clock & Gauges, Warning & Indicator Lights
