Trouble Code 25

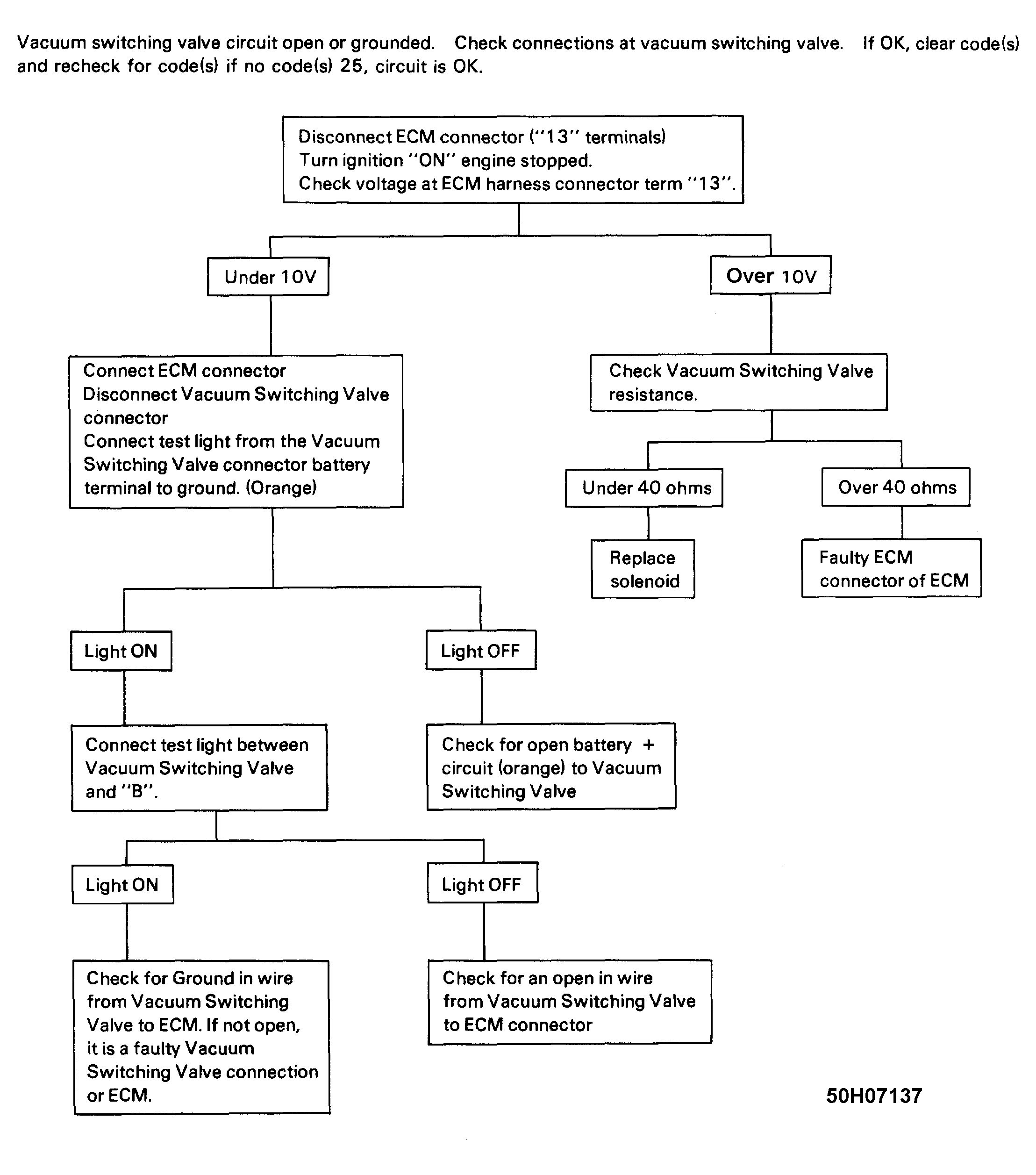

Fig 1: Trouble Code 25, Flow Chart

G50H07137

Fig 2: Trouble Code 25, Schematic

G50J07138
