Control Units

CONTROL UNITS LOCATION

Component Location
EGR Control Unit (Diesel) Under left side of instrument panel.
Electronic Control Module (ECM) Below right side of instrument panel.
Engine Speed Sensor Unit Under left side of dash.

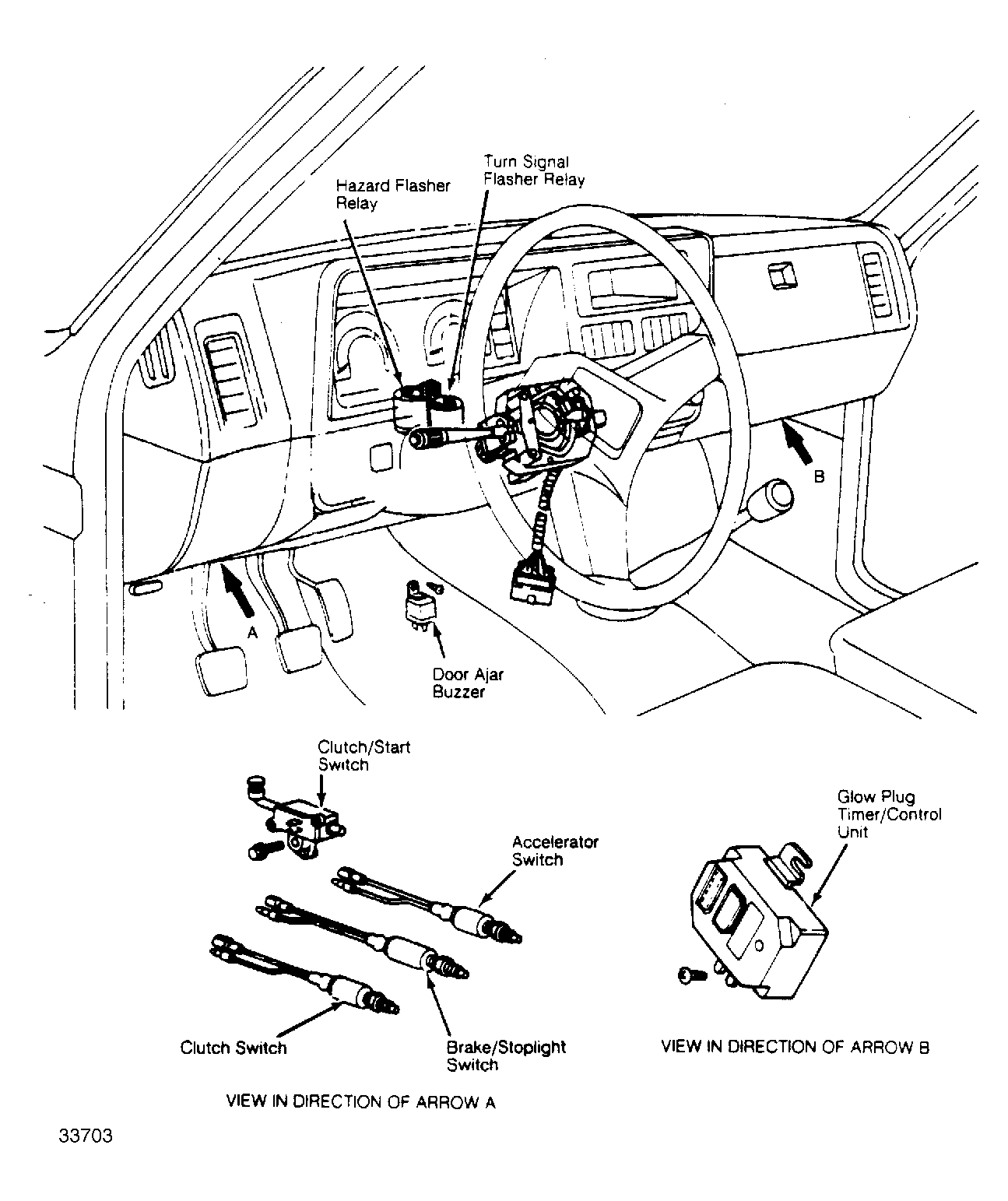

Glow Plug Timer/Control Unit Under glove box. See Figure .
