Wiring Diagrams

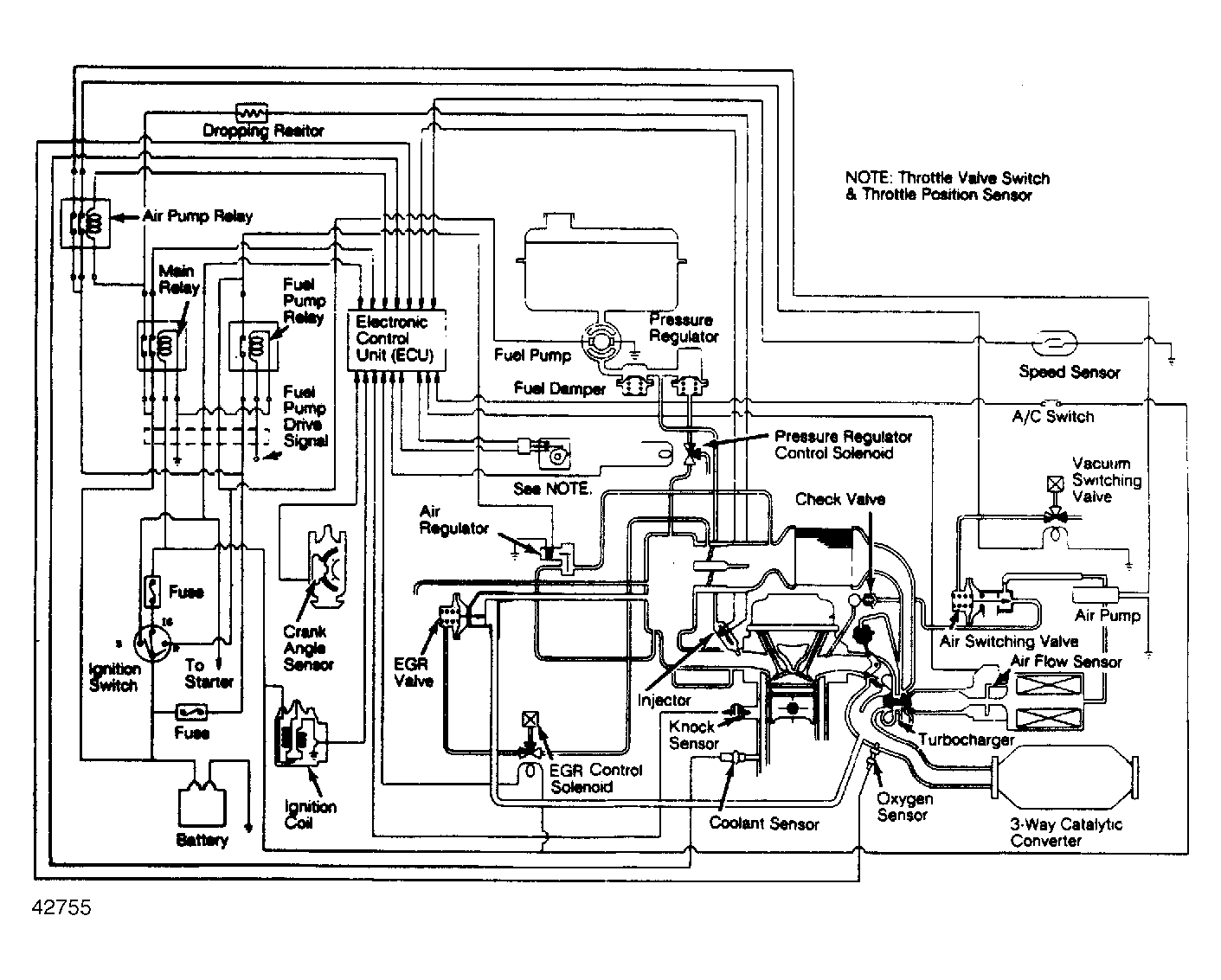

Fig 1: Impulse (I-TEC) Emission Control Diagram (Turbo)

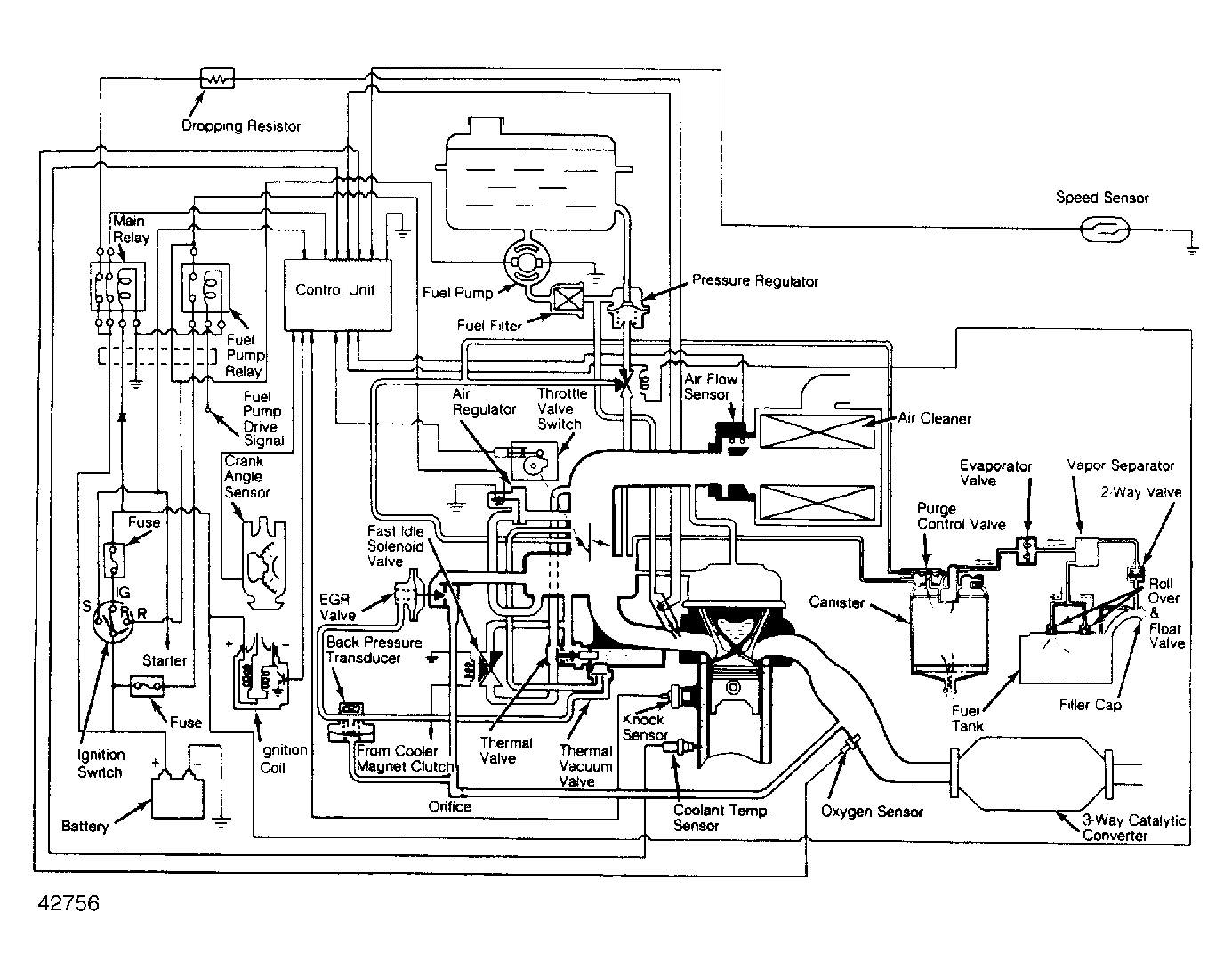

Fig 2: Impulse (I-TEC) Emission Control Diagram (Except Turbo)
