Early Fuel Evaporation System: Description

The Early Fuel Evaporation system uses a ceramic heater grid located underneath the primary bore of the carburetor. The grid heats incoming air/fuel mixture for improved vaporization and driveability during cold engine operation.

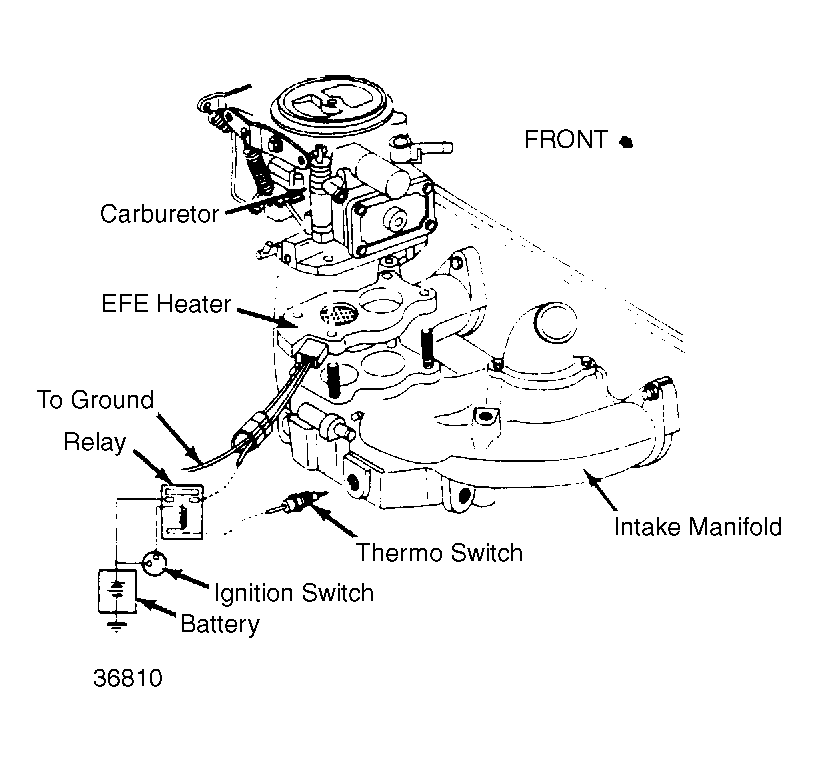

Fig 1: Early Fuel Evaporation System EFE heater located in carburetor insulator gasket.
G36810
