Home >> Isuzu >> 1985 >> Pickup LS, 1.9 A, RWD, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor System >> Testing >> "Check Engine" Light Inoperative, Chart 5

"Check Engine" Light Inoperative, Chart 5

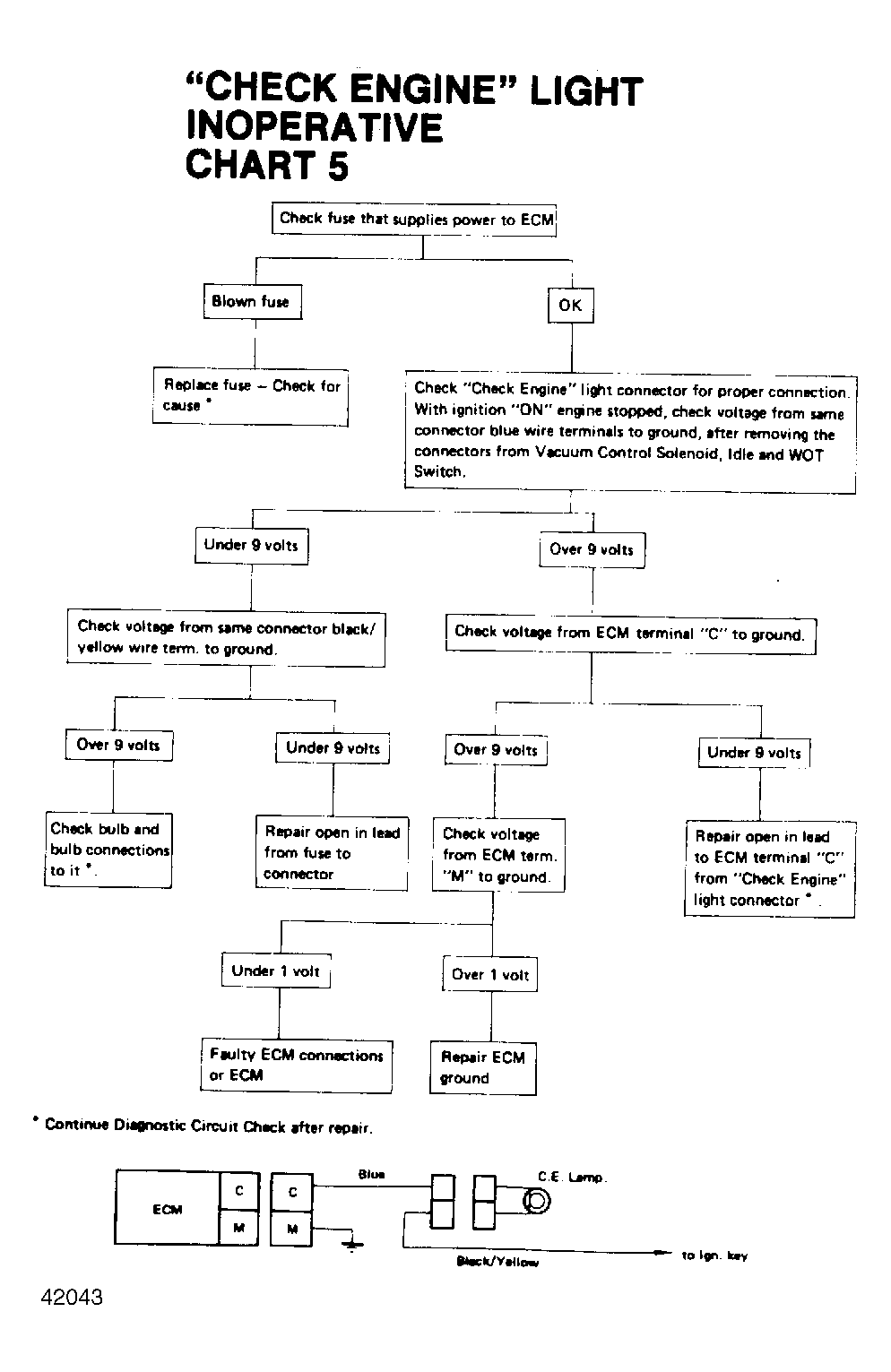

Fig 1: "Check Engine" Light Inoperative, Chart 5

G42043
