Kick Lever

Completely close primary side throttle valve by turning out throttle adjustment screw. Loosen the lock nut on kick lever screw, and turn screw until it contacts return plate. Tighten lock nut.

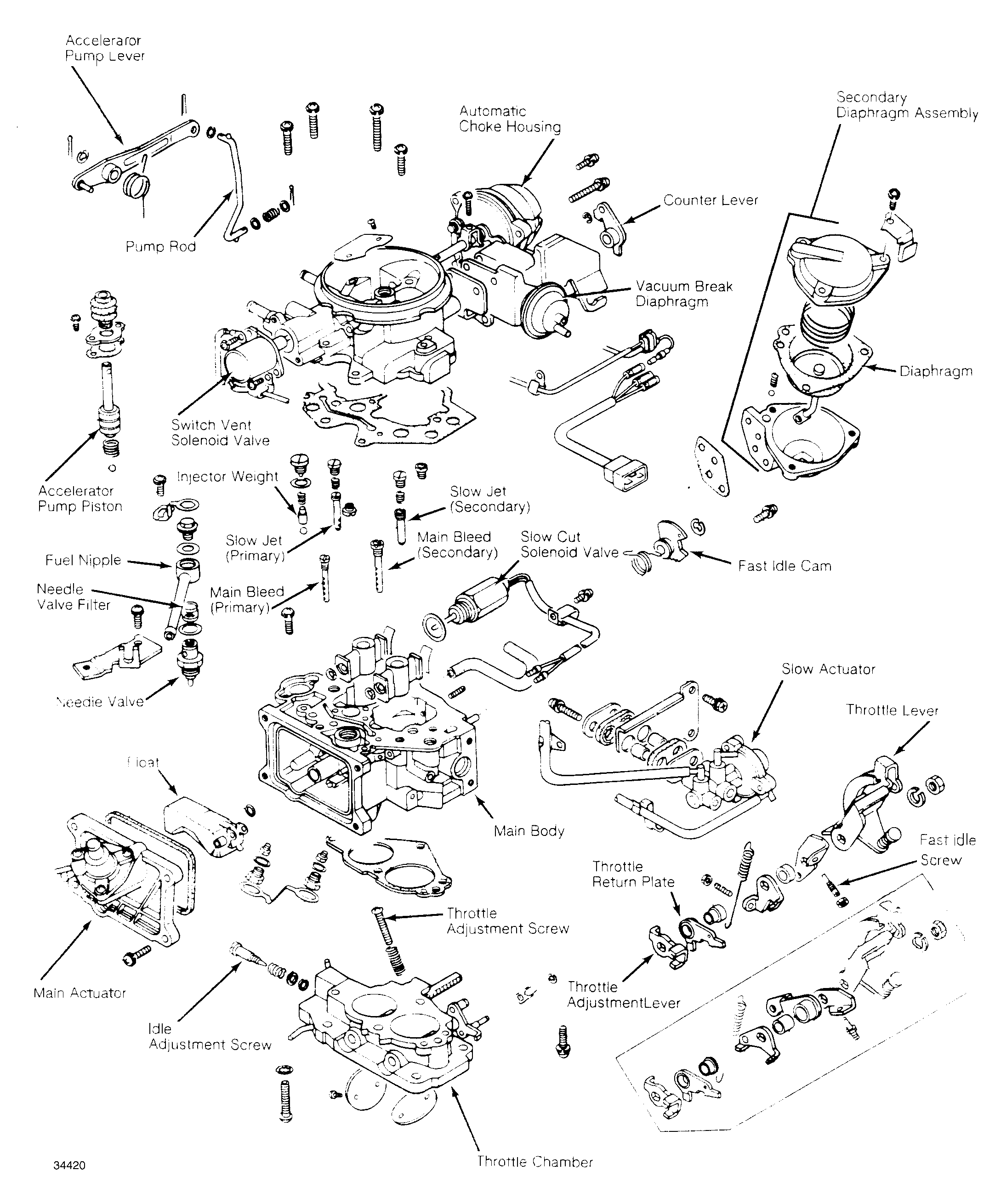

Fig 1: Exploded View of Hitachi DCH, DFP & DHP Carburetor
G34420
