Solenoid Valve

The solenoid valve is actuated by electrical current from altitude switch at high altitudes. The solenoid valve is opened to send air from air cleaner to 3 altitude compensating ports in carburetor.

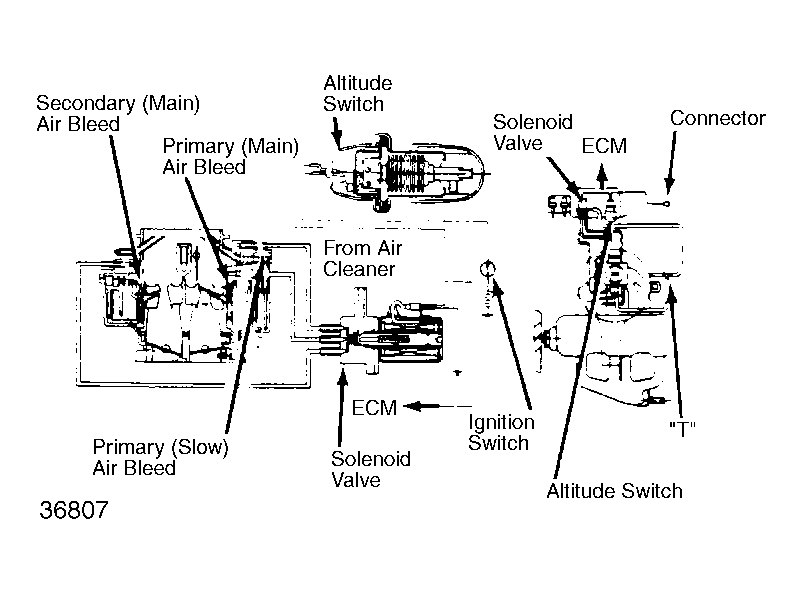

Fig 1: High Altitude Emission Control System
G36807
