Vacuum Switching Valve: Impulse

The Impulse vacuum switching valve has 2 ports. The application of manifold vacuum to the air switching valve is controlled by the electronic control module.

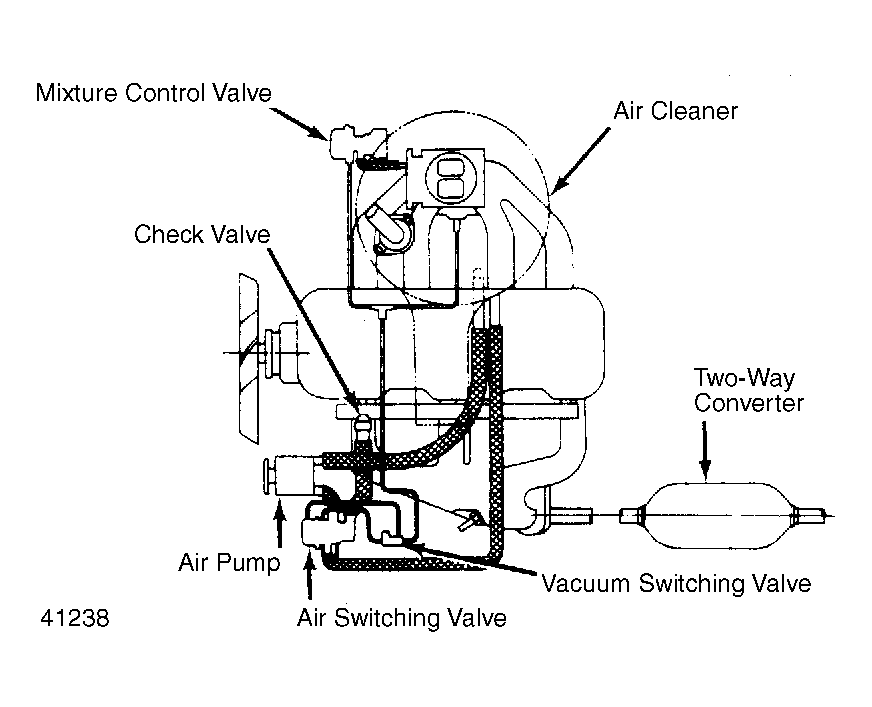

Fig 1: Air Injection System (I-Mark & California P'UP & Trooper II)
G41238
