Float Level
NOTE:
Line on fuel bowl sight glass indicates proper fuel level. If adjustment is necessary, use following procedures.

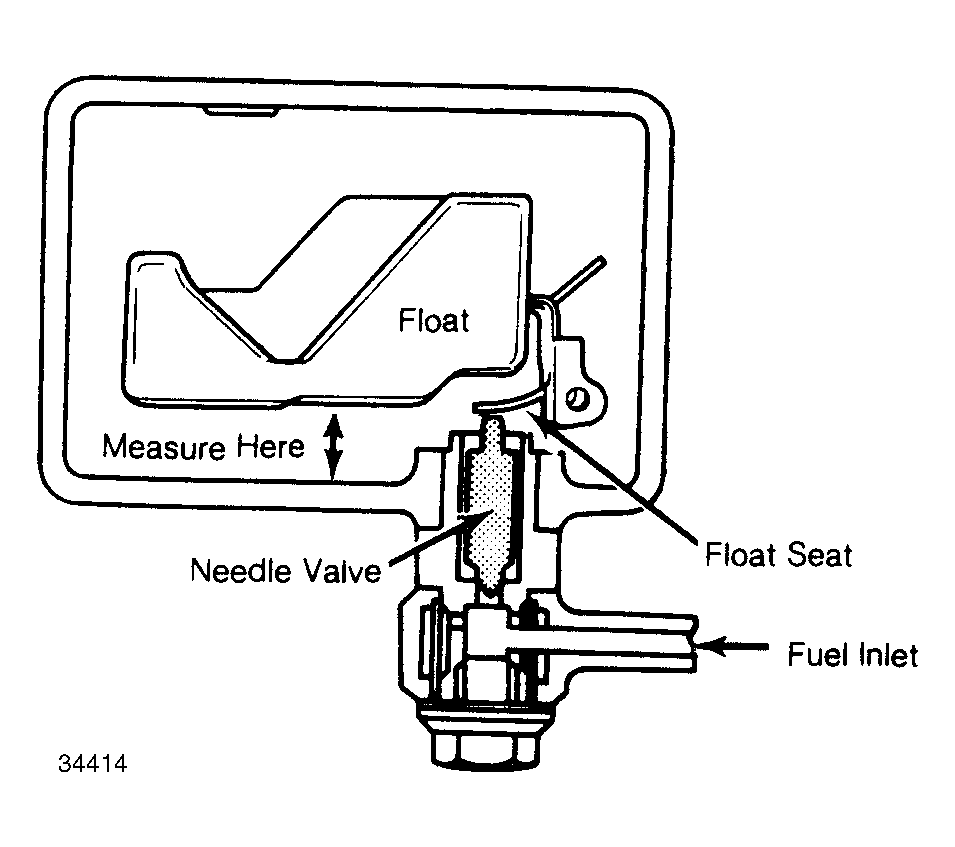

With sight glass cover removed and carburetor inverted, check float position in relation to being parallel with top of fuel bowl. Bend float seat to make necessary adjustment. See Fig 1 .
