Clutch Switch

Clutch switch is installed near clutch pedal. With clutch pedal depressed, switch is turned off. With switch off, coasting richer circuit is de-energized.

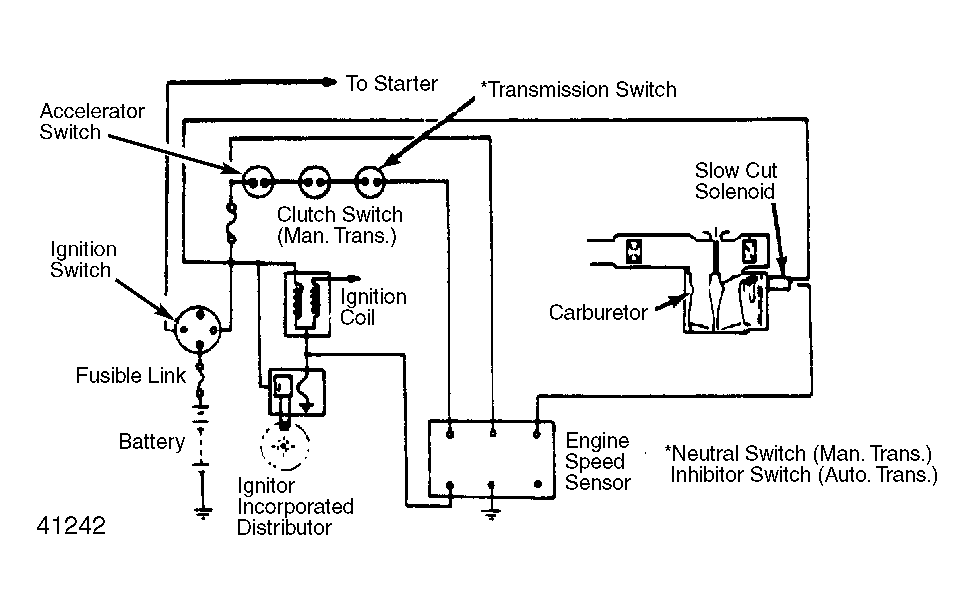

Fig 1: Coasting Fuel Cut-Off System (P'UP & Trooper II)
G41242
