Home >> Isuzu >> 1984 >> Impulse Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul - A/T >> Component Disassembly & Reassembly >> Valve Body Assembly >> Notes

Valve Body Assembly: Notes

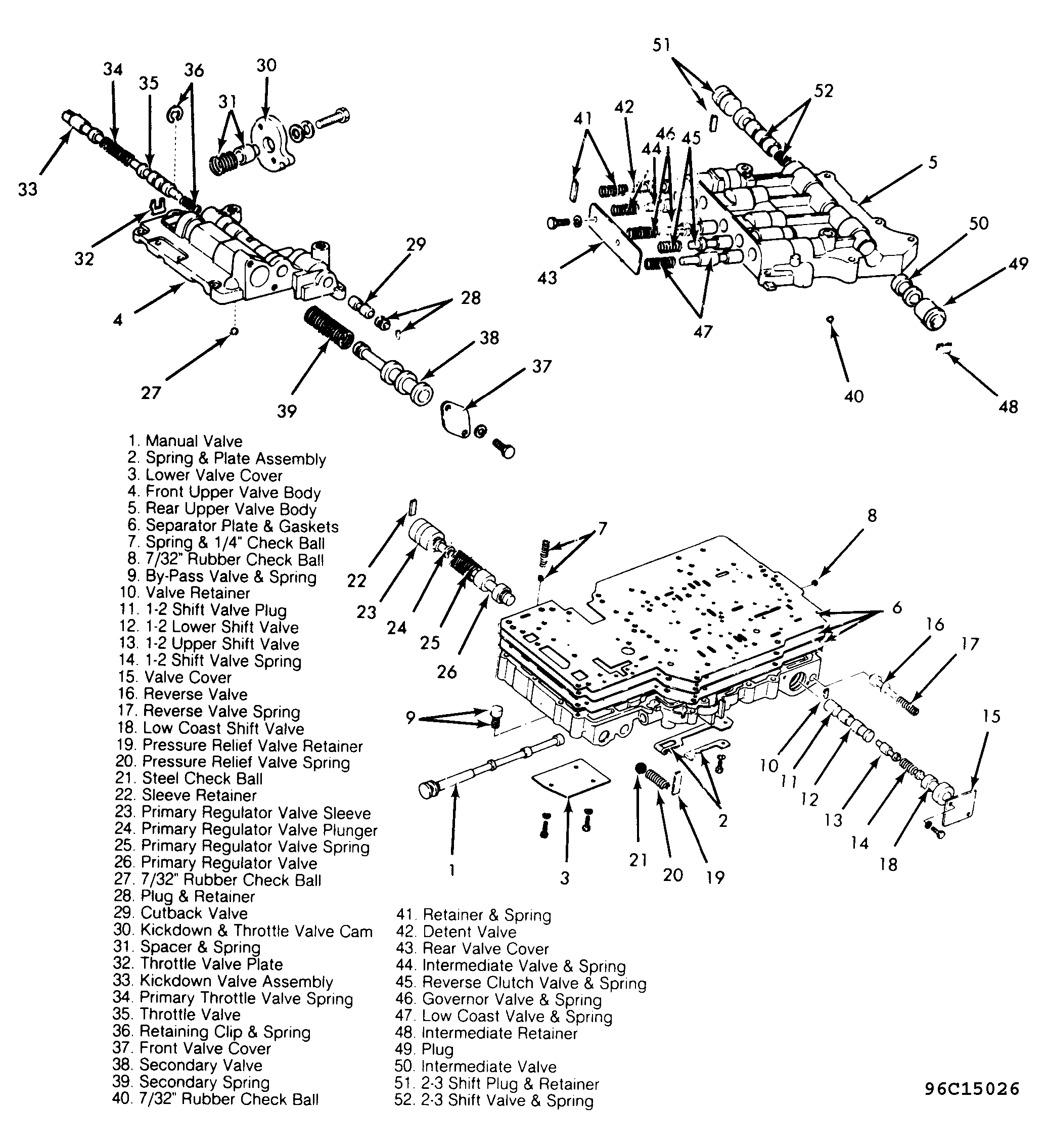

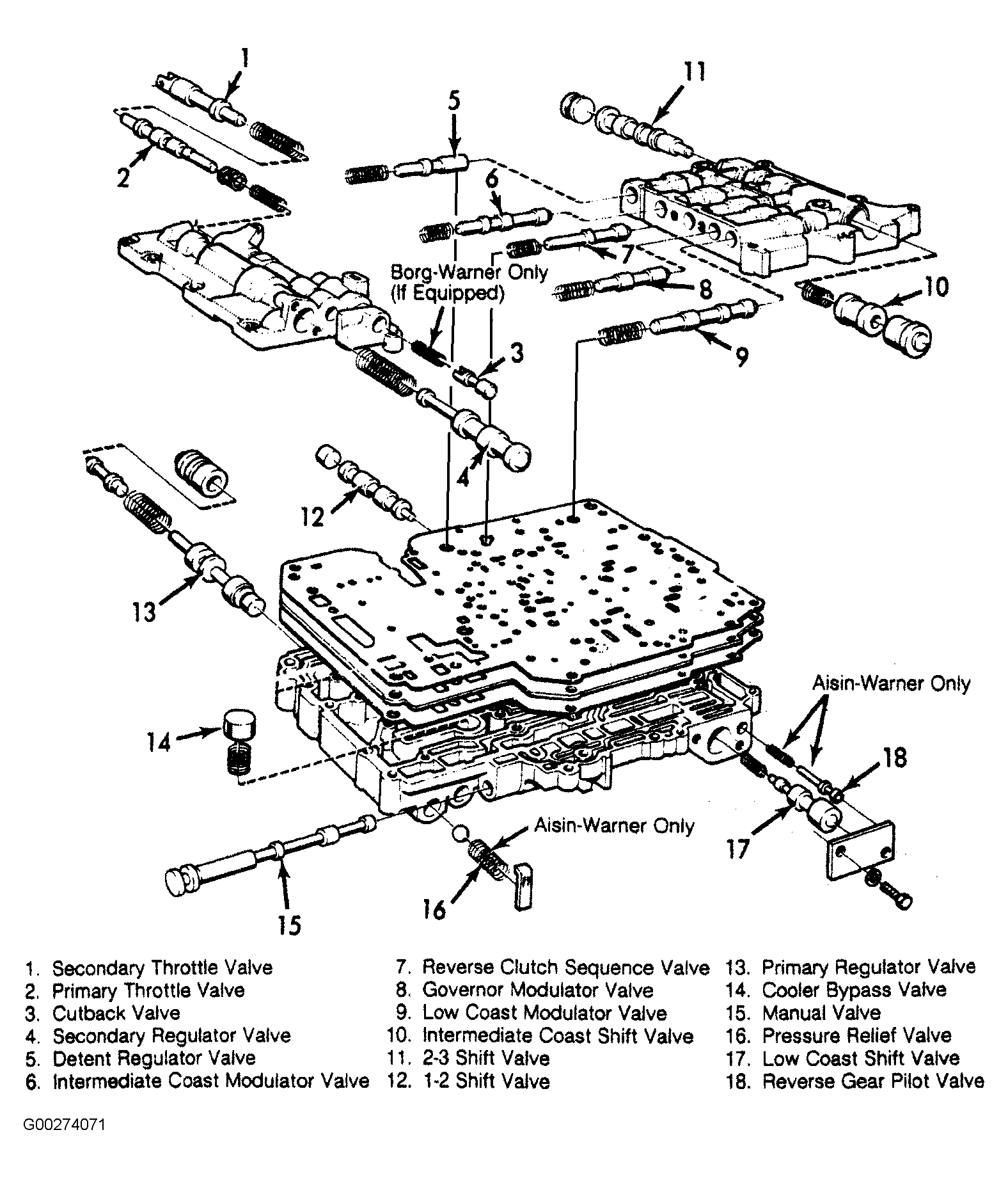

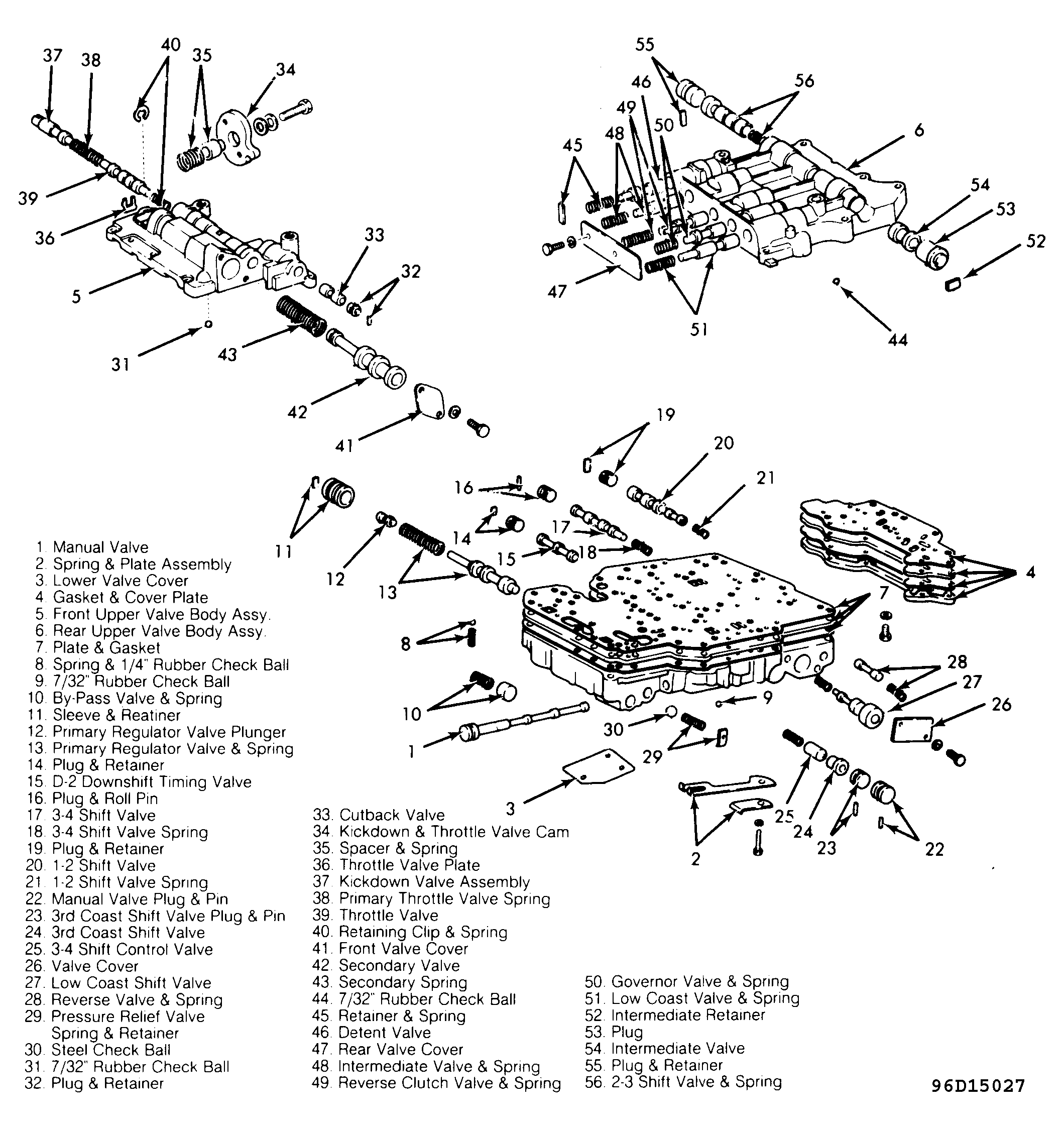

NOTE: Valve body assemblies used on BW and AW transmissions differ slightly. These differences will be called out in following procedures. See Figure , Figure and Figure
.
