Governor Pressure Test: Notes

NOTE: Governor pressure is "modified" line pressure. Therefore, governor pressure will be incorrect if line pressure is incorrect. Line pressure must be correct before checking governor pressure.

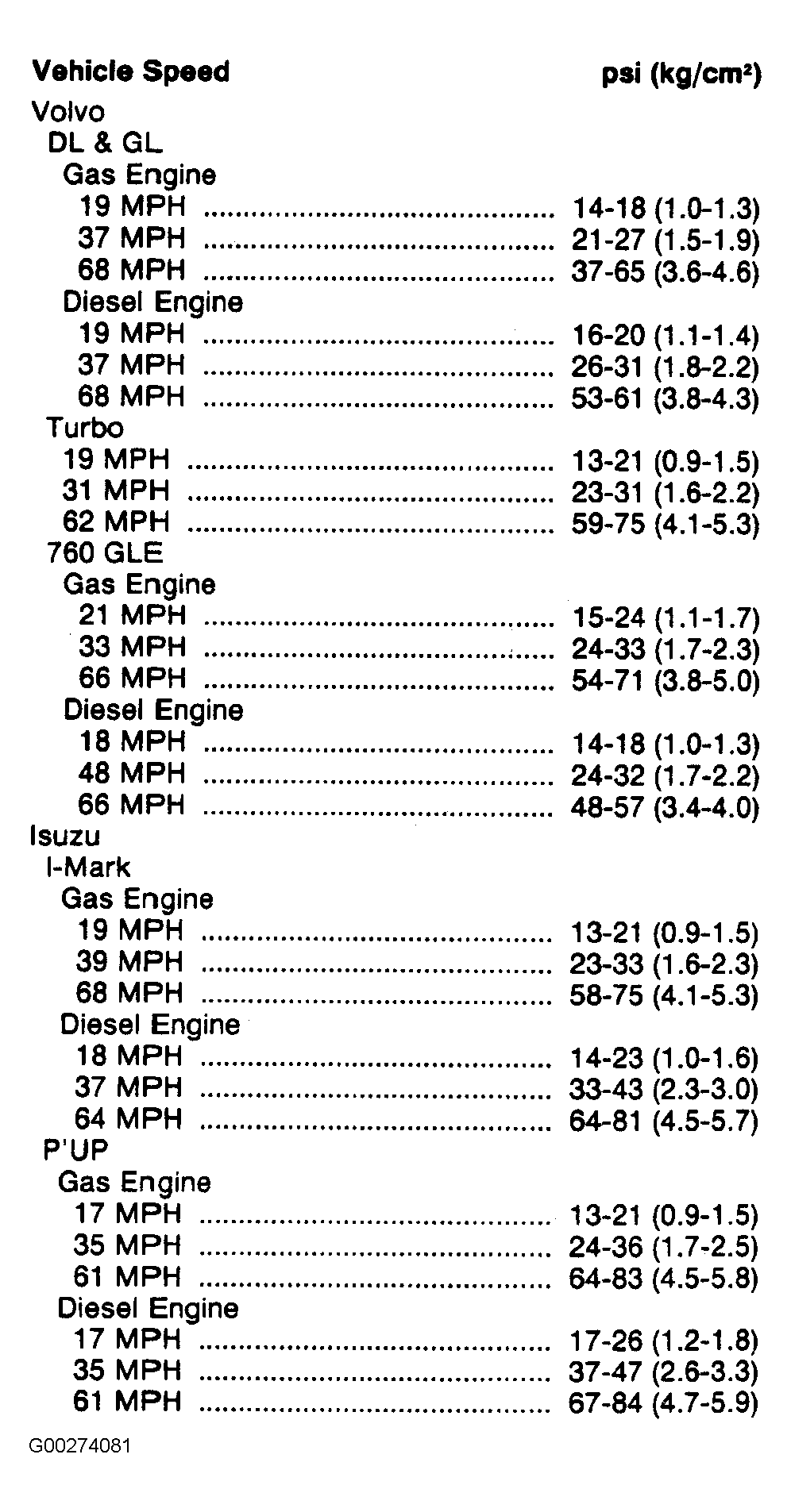

Fig 1: Governor Pressure Specifications
G00274081Courtesy of ISUZU MOTOR CO.
