Fast Idle Speed

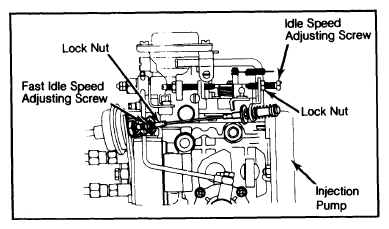

Warm engine to normal operating temperature. Connect tachometer. Disconnect hoses 1 and 2 from vacuum switch valve and connect together with tubing. See  Figure .  Check fast idle speed. If fast idle speed is incorrect, loosen adjusting lock nut and adjust idle speed by moving adjusting nut. See  Figure .
