Tune-Up - 4 CYL: Distributor

All models are equipped with Nippondenso electronic ignition systems.

PICK-UP COIL AIR GAP

Application Gap In. (mm)
All Models .008-.016 (.2-.4)

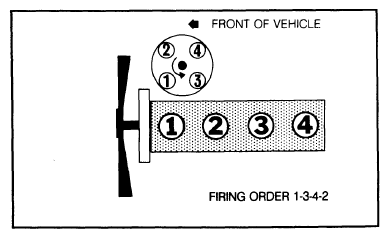

Fig 1: Firing Order and Distributor Rotation
G09314250Courtesy of ISUZU MOTOR CO.
