Electronic Control Unit Operation Check

  1. Connect voltmeter positive lead to brown wire at coil negative terminal. Connect voltmeter negative lead to ground. See Fig 1.

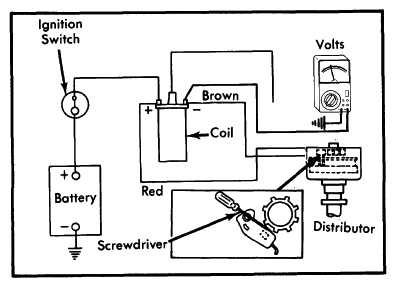

    Fig 1: Checking Electronic Control Unit Operation
    G09336934Courtesy of NOT AVAILABLE
  2. Turn ignition switch "ON". Place the blade of a small screwdriver against face of sensor while observing voltmeter. Voltage should increase to 12-13 volts. When screwdriver is removed, voltage should drop to 5-8 volts.
  3. If voltage does not switch up and down when screwdriver is against sensor and then removed, electronic control unit is inoperative and must be replaced.
