Charge Relay

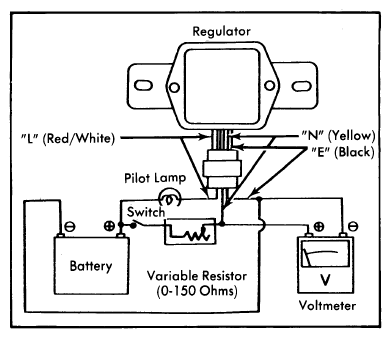

Insert a voltmeter, variable resistor, and switch into circuit as shown in illustration. Set the resistance of rheostat at maximum, close switch and slowly decrease resistance. The operating voltage of the charge relay will be found when the charge light goes out. If the operating voltage is not within specifications, adjust in the same manner as voltage regulator.
VOLTAGE REGULATOR SPECIFICATIONS
| Application | Specification |
|---|---|
| Regulated Voltage | 13.8-14.8 V. |
| Yoke Gap | Not Adjustable |
| Core Gap | .024-.039" |
| Point Gap | .012-.016" |
CHARGE RELAY SPECIFICATIONS
| Application | Specifications |
|---|---|
| Operating Voltage | 4-5 V. |
| Voltage Coil Resistance | 31.9 Ohms |
| Yoke Gap | Not Adjustable |
| Core Gap | .031-.039" |
| Point Gap | .012-.016" |
