1971
>>
1310 4.3L Eng, Not Available Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Tune-Up - V8
>>
Distributor
Tune-Up - V8: Distributor
Point Gap
New.019", Used.016"
Cam Angle
28-32°
Breaker Arm Spring Tension
17-21 ozs.
Condenser Capacity
.21-.25 mfd.

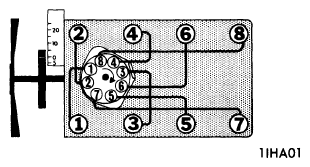

Fig 1: Firing Order & Timing Marks
Courtesy of NOT AVAILABLE
