High Temperature Vacuum Control Valve (Red Color)
Disconnect hoses from valve and blow through valve. If temperature is below 195°F, air will pass through valve and if temperature is above 195°F valve will be closed and air will not pass through valve. If valve fails test, replace valve.
NOTE:

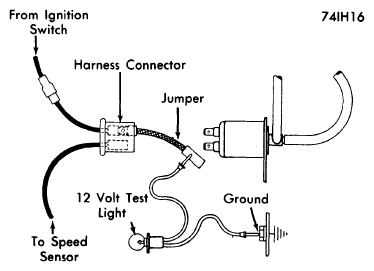

Keep ignition switch turned "OFF" except when making electrical current test to avoid damage to ignition system in the following tests.
