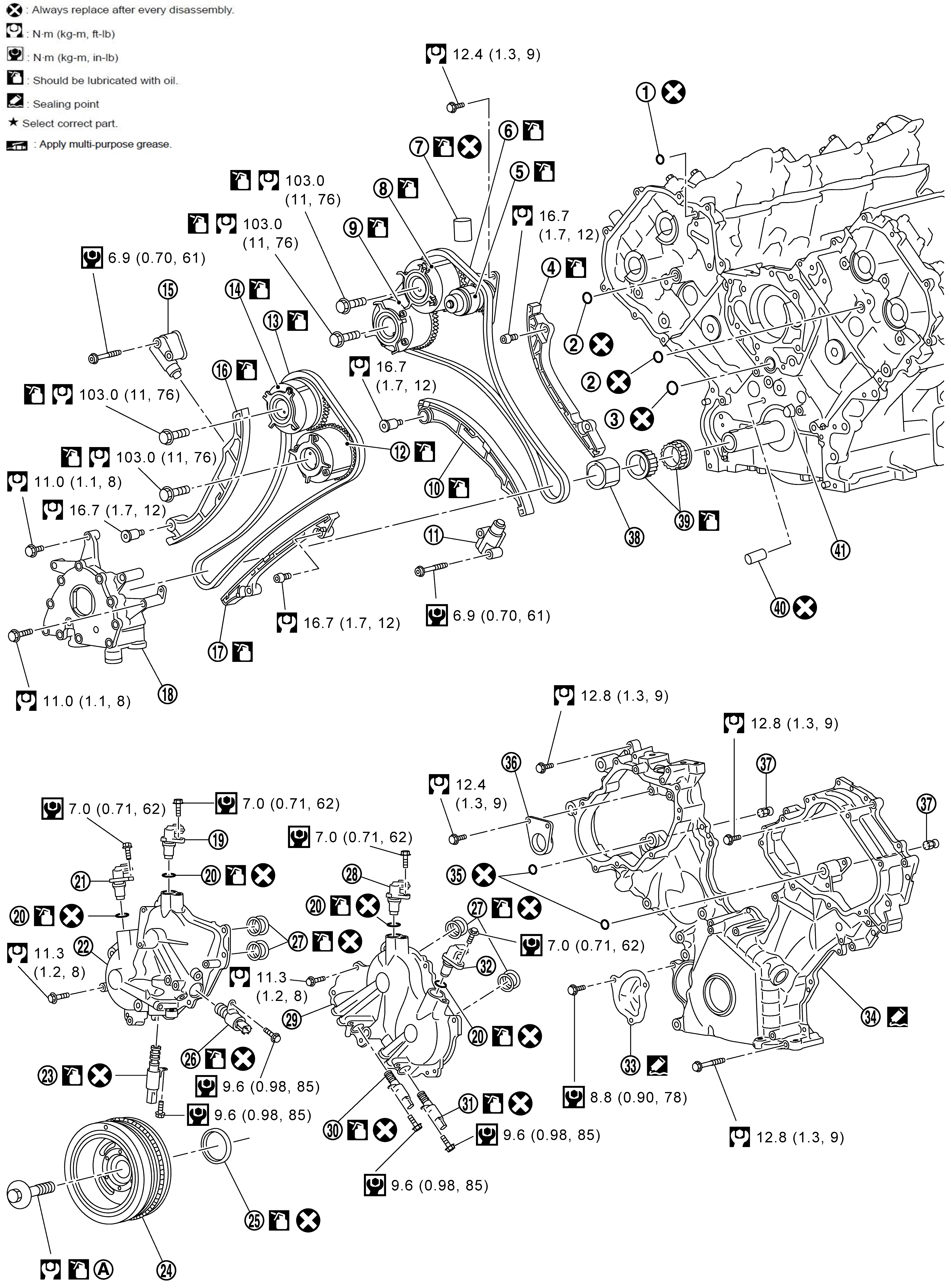

| 1. |
O-ring |
2. |
O-ring |
3. |
O-ring |
| 4. |
Tension guide (bank 2) |
5. |
High pressure fuel pump camshaft |
6. |
Timing chain (bank 2) |
| 7. |
Lifter |
8. |
Intake camshaft sprocket (bank 2) |
9. |
Exhaust camshaft sprocket (bank 2) |
| 10. |
Slack guide (bank 2) |
11. |
Timing chain tensioner (bank 2) |
12. |
Exhaust camshaft sprocket (bank 1) |
| 13. |
Timing chain (bank 1) |
14. |
Intake camshaft sprocket (bank 1) |
15. |
Timing chain tensioner (bank 1) |
| 16. |
Slack guide (bank 1) |
17. |
Tension guide (bank 1) |
18. |
Oil pump |
| 19. |
Intake camshaft position sensor (bank 2) |
20. |
O-ring |
21. |
Exhaust camshaft position sensor (bank 2) |
| 22. |
Valve timing control cover (bank 2) |
23. |
Exhaust valve timing control solenoid valve (bank 2) |
24. |
Crankshaft pulley |
| 25. |
Front oil seal |
26. |
Intake valve timing control solenoid valve (bank 2) |
27. |
Seal ring |
| 28. |
Intake camshaft position sensor (bank 1) |
29. |
Valve timing control cover (bank 1) |
30. |
Intake valve timing control solenoid valve (bank 1) |
| 31. |
Exhaust valve timing control solenoid valve (bank 1) |
32. |
Exhaust camshaft position sensor (bank 1) |
33. |
Timing chain tensioner cover |
| 34. |
Front cover |
35. |
O-ring |
36. |
Camshaft bracket |
| 37. |
Oil filter (for valve timing control solenoid valve) |
38. |
Oil pump drive spacer |
39. |
Crankshaft sprocket |
| 40. |
Oil jet (bank 2) |
41. |
Oil jet (bank 1) |
| A. |
Comply with the installation procedure when tightening. Refer to TIMING CHAIN : Removal and Installation . |
 |
: N.m (kg-m, ft-lb) |
 |
: N.m (kg-m, in-lb) |
 |
: Always replace after every disassembly. |
: Should be lubricated with oil. |
: Sealing point |
