REAR WHEEL SENSOR : Exploded View

CAUTION:

Replace wheel hub and bearing assembly as an assembly when replacing because wheel sensor cannot be disassembled.

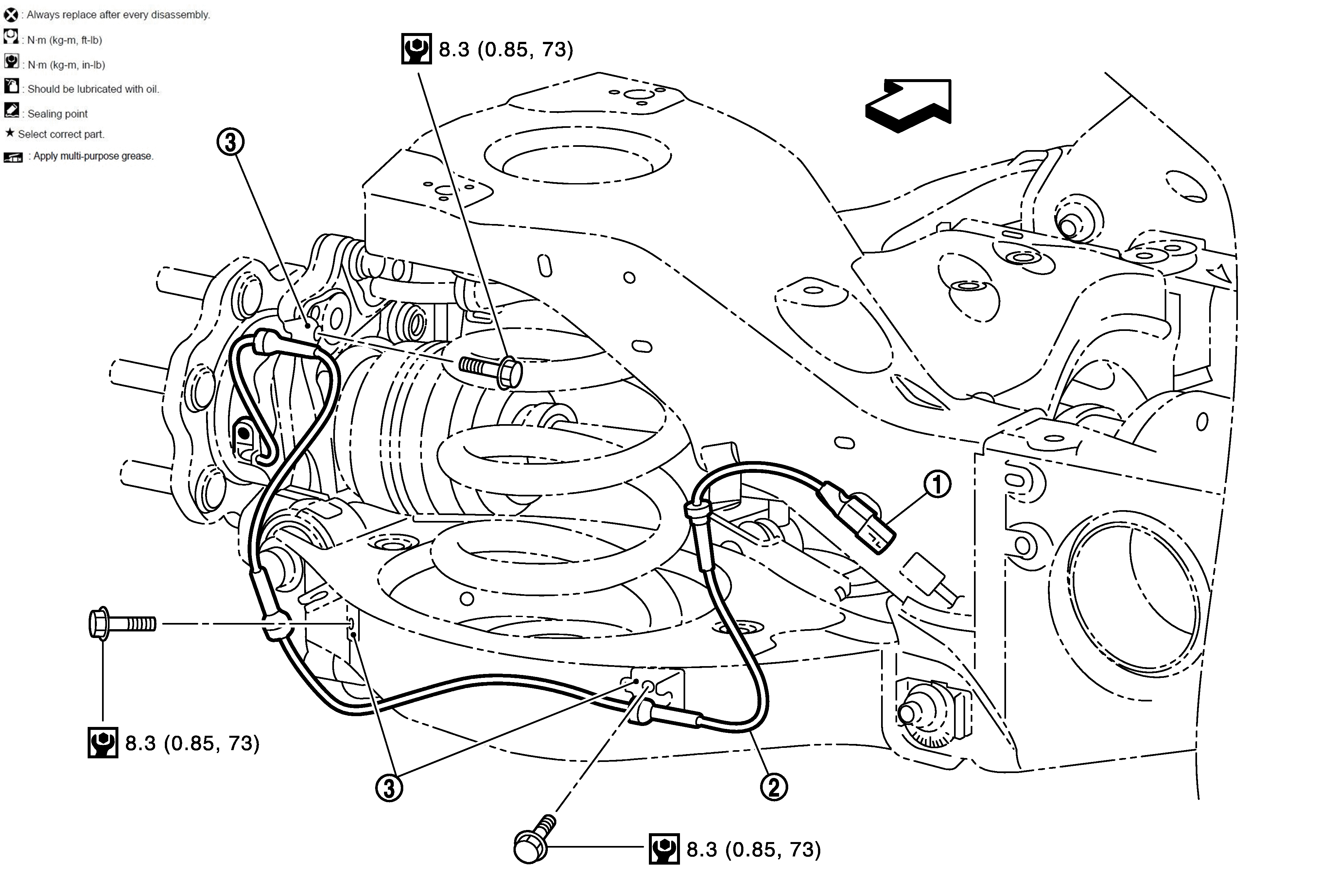

Fig 1: Rear Wheel Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Rear LH wheel sensor harness connector

Rear LH wheel sensor

Bracket

	: Vehicle front
	: N.m (kg-m, in-lb)

NOTE: Rear RH wheel sensor is symmetrically opposite of LH.
