Component Location

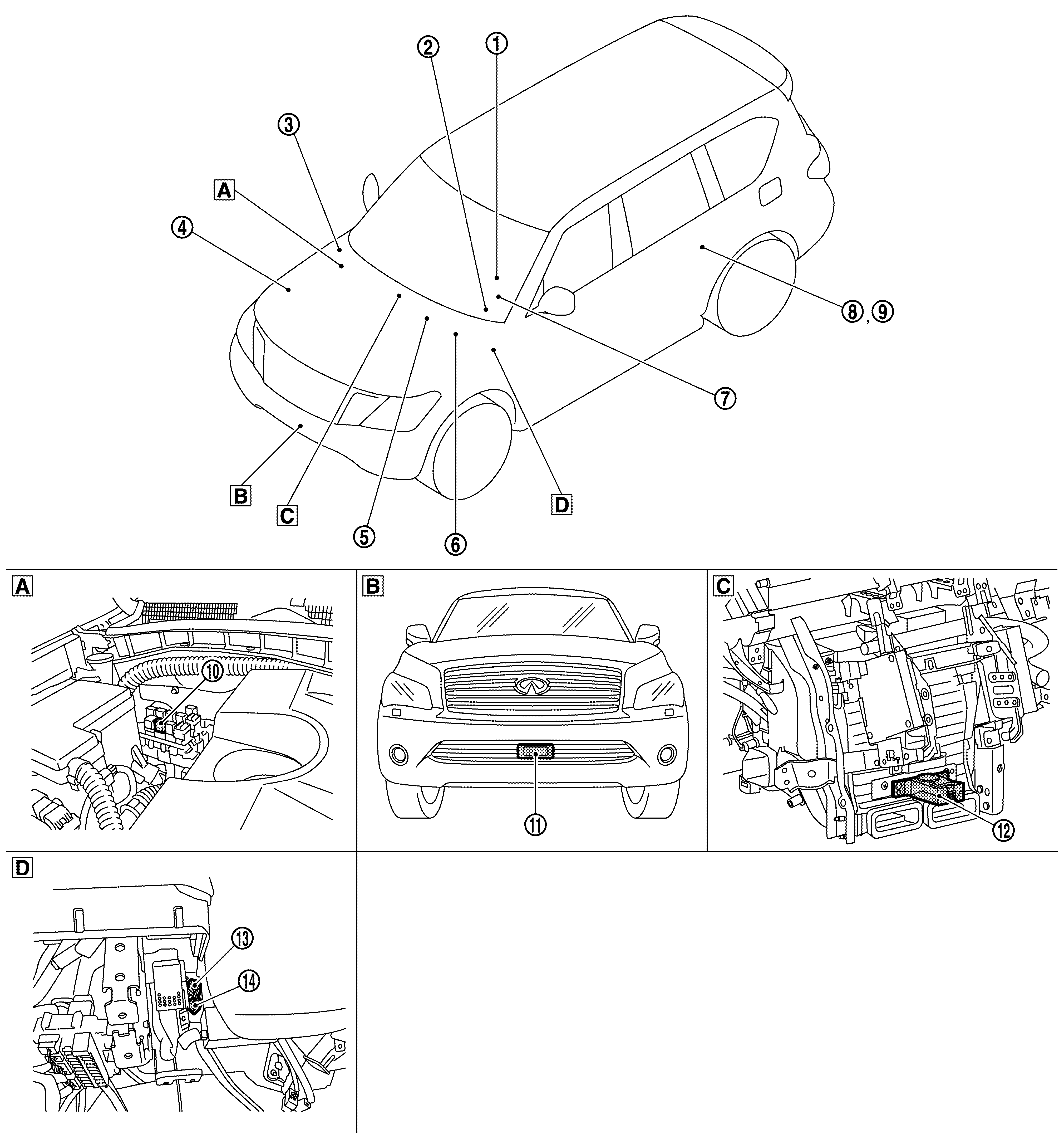

GNSDB147071Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Engine room (RH) SYMBOL Front bumper (center) SYMBOL Behind of AV control unit
SYMBOL Behind of instrument lower panel (LH)

x: Applicable

No. Component Function Description
Vehicle-to-vehicle distance control mode Conventional (fixed speed) cruise control mode
SYMBOL ICC steering switch x x
  • Description: Refer to Component Description .
  • Switch name and function: Refer to Operation . (Vehicle to vehicle distance control mode)
  • Switch name and function: Refer to Operation . (Conventional cruise control mode)
SYMBOL Combination meter x x Performs the following operations using the signals received from the ADAS control unit via the CAN communication
  • Description: Refer to Component Description .
  • System display and warning: Refer to Operation  (Vehicle to vehicle distance control mode)
  • System display and warning: Refer to Operation  (Conventional cruise control mode)
SYMBOL Transfer control unit x x
  • TCM transmits the current 4WD mode signal to ADAS control unit via CAN communication
  • Refer to Component Location for detailed installation location
SYMBOL ECM x x
  • ECM transmits the accelerator pedal position signal, ICC brake switch signal, stop lamp switch signal, ICC steering switch etc. to ADAS control unit via CAN communication
  • ECM controls the electric throttle control actuator based on the engine torque demand received from the ADAS control unit via CAN communication
  • Refer to Component Location for detailed installation location.
SYMBOL TCM x x
  • TCM transmits the signal related to A/T control to ADAS control unit via CAN communication
  • Refer to Component Location for detailed installation location
SYMBOL ABS actuator and electric unit (control unit) x x
  • ABS actuator and electric unit (control unit) transmits the vehicle speed signal (wheel speed), stop lamp switch signal and VDC/TCS/ABS system operation condition to ADAS control unit via CAN communication
  • ABS actuator and electric unit (control unit) controls the brake, based on a brake fluid pressure control signal received from the ADAS control unit via CAN communication
  • Refer to Component Location for detailed installation location
SYMBOL Steering angle sensor x
  • Measures the rotation amount, rotation speed, and rotation direction of steering wheel, and then transmits them to ADAS control unit via CAN communication
  • Refer to Component Location for detailed installation location
SYMBOL ADAS control unit x x Refer to Component Description . Refer to Component Location for detailed installation location
SYMBOL ADAS control unit 2 x x Refer to Component Description . Refer to Component Location for detailed installation location
SYMBOL ICC brake hold relay x   Refer to Component Description .
SYMBOL Distance sensor x x Refer to Component Description .
SYMBOL Driver assistance buzzer x x Refer to Component Description .
SYMBOL Stop lamp switch x x Refer to Component Description .
SYMBOL ICC brake switch x x
