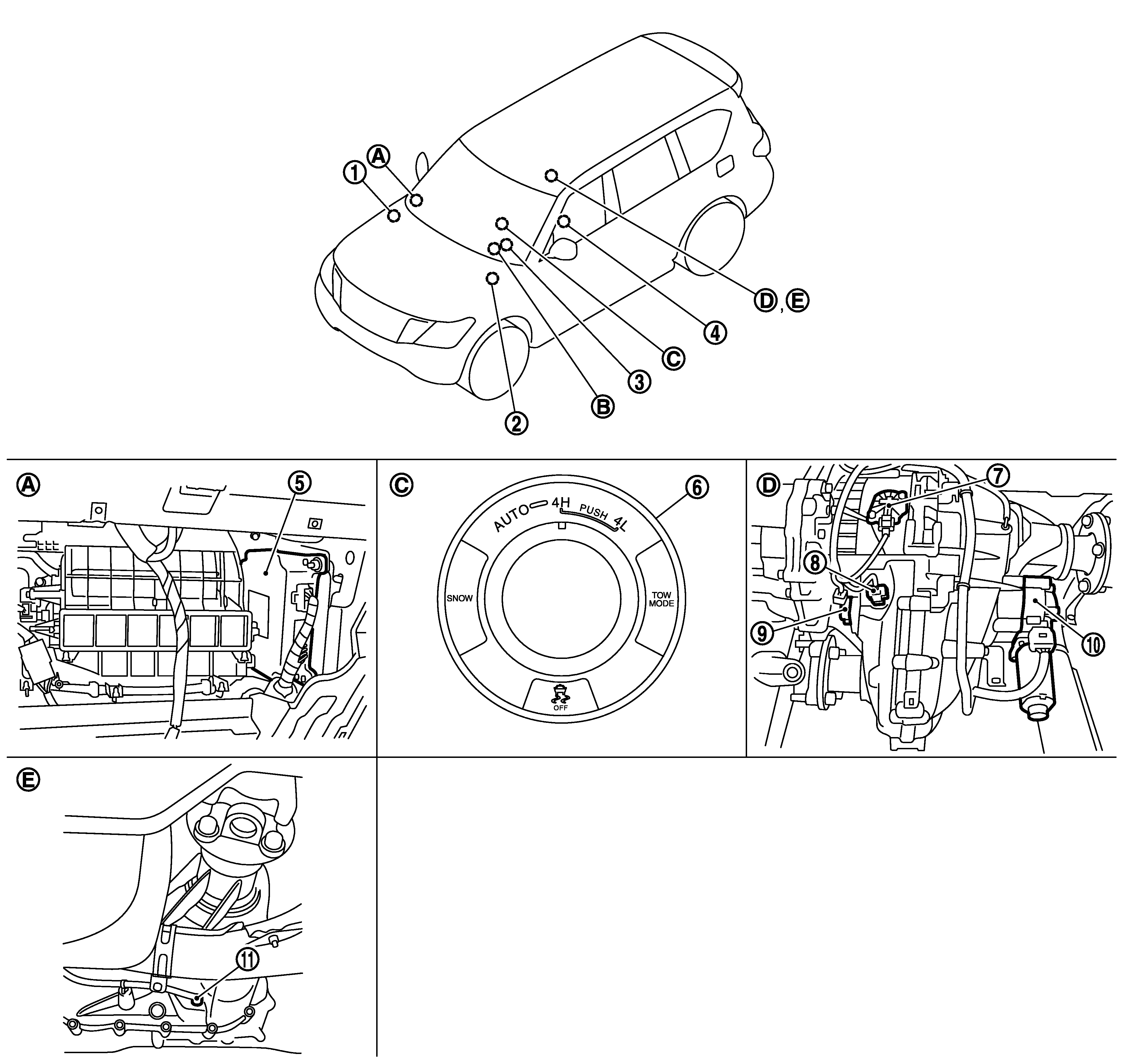

Component Location
| 1. | ECM Refer to Component Location . |
2. | ABS actuator and electric unit (control unit) Refer to Component Location . |
3. | Steering angle sensor Refer to Component Location . |
| 4. | Control valve and TCM Refer to Component Location . |
5. | Transfer control unit | 6. | 4WD switch assembly |
| 7. | Transfer lock position sensor | 8. | Transfer Hi-Lo position sensor | 9. | Transfer rotary position sensor |
| 10. | Transfer control actuator | 11. | Transfer fluid temperature sensor | ||
| A. | Back of glove box assembly | B. | 4WD indicator lamp, 4WD warning lamp, ATP warning lamp (in combination meter) | C. | Console assembly |
| D. | Transfer assembly upper side | E. | Transfer assembly under side | ||
