Structure and Operation

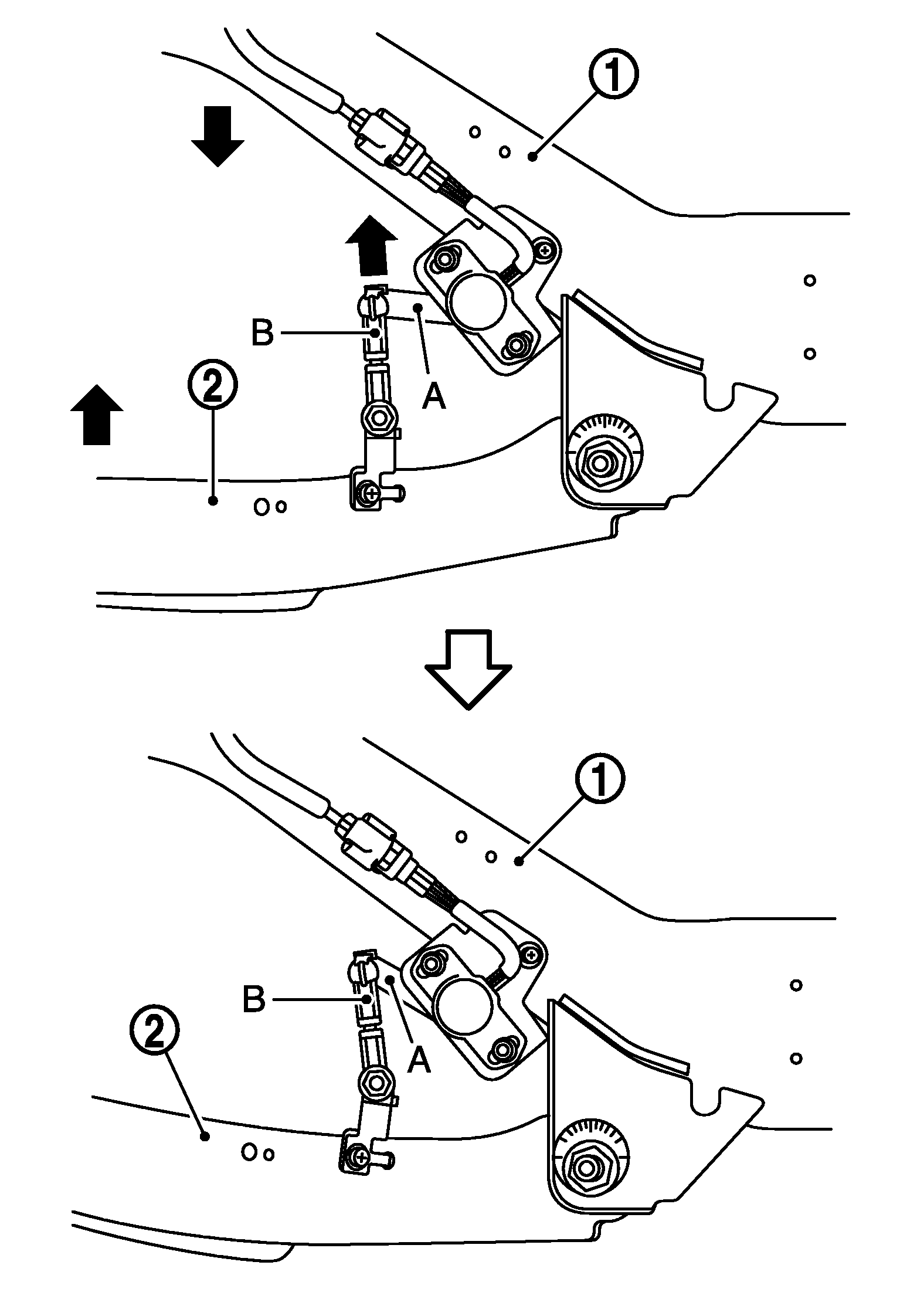

Vehicle height sensor is installed between rear suspension member (1) and rear lower link (2).
Since arm (A) portion and rod (B) portion are ball joint type, distance between rear suspension member and rear lower link shortens when vehicle height of vehicle rear lowers because of laden or towing conditions, and arm portion changes to the status that is higher in its left side as shown in the illustration.
This angle change in arm portion is transmitted to the air levelizer control module according to electric signal.
