ECM : Removal and Installation
REMOVAL
CAUTION:
Perform ADDITIONAL SERVICE WHEN REPLACING ECM. Refer to Work Procedure .
- Remove the battery and battery tray. Refer to 12 V BATTERY : Removal and Installation .

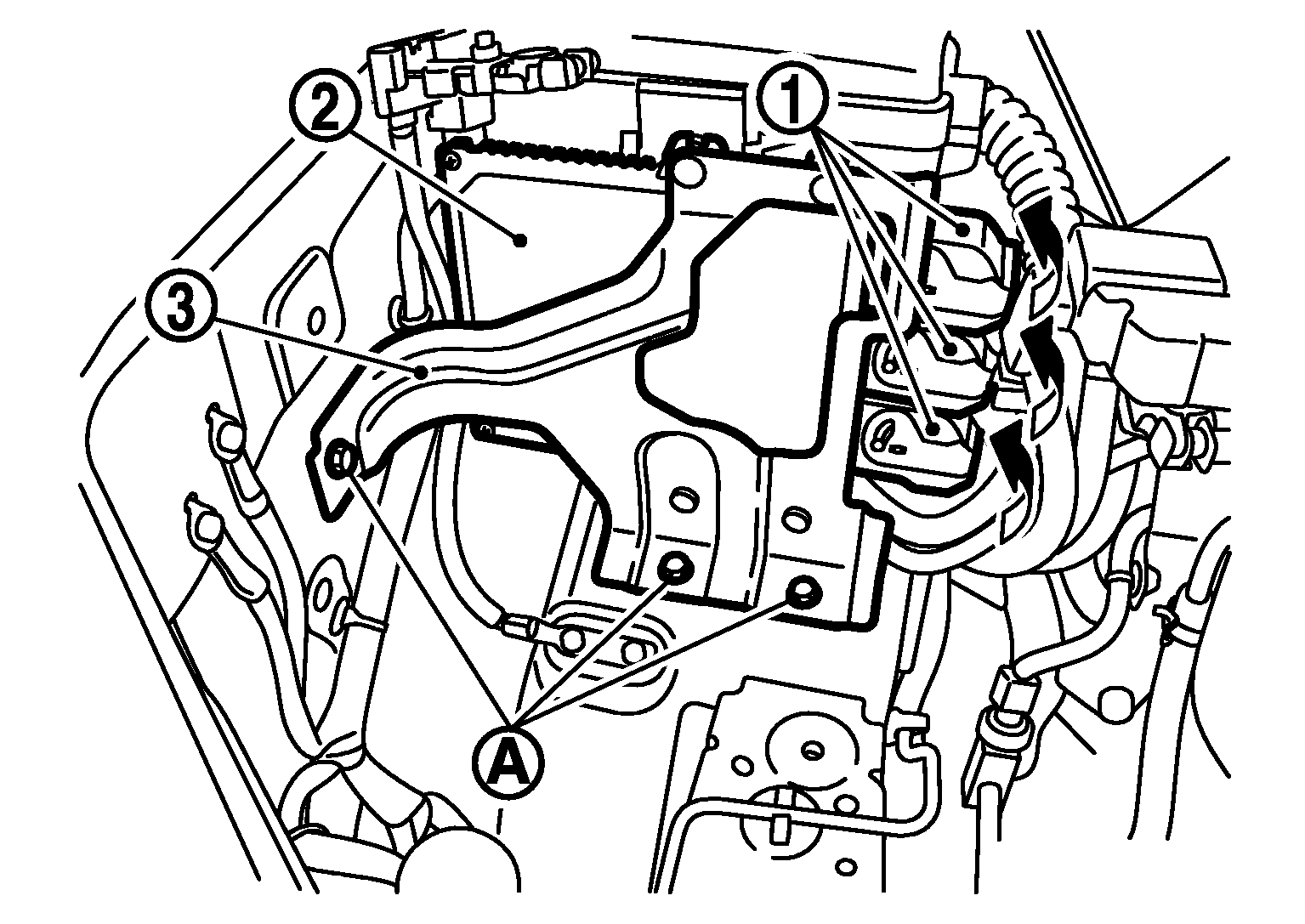

- Disconnect ECM harness connectors (1) as shown in the figure, below.
- Remove ECM bracket bolts (A).
- Separate ECM (2) and ECM bracket (3).
INSTALLATION
Install in the reverse order of removal.
