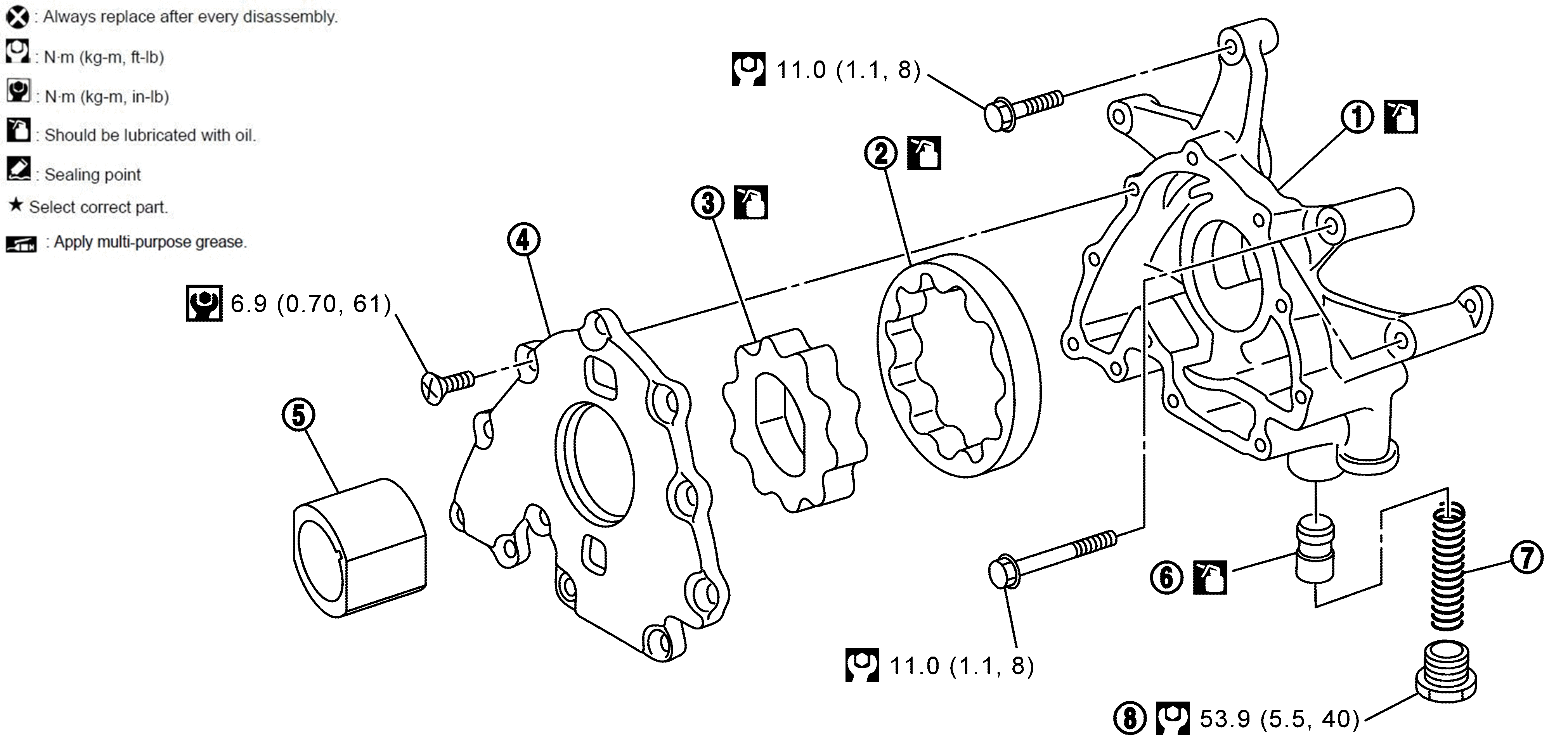

OIL PUMP : Exploded View

Fig 1: Oil Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil pump body	2.	Outer rotor	3.	Inner rotor
4.	Oil pump cover	5.	Oil pump drive spacer	6.	Regulator valve
7.	Regulator spring	8.	Regulator plug
	: N.m (kg-m, ft-lb)
	: N.m (kg-m, in-lb)
: Should be lubricated with oil.
