ALTERNATOR : Exploded View

REMOVAL

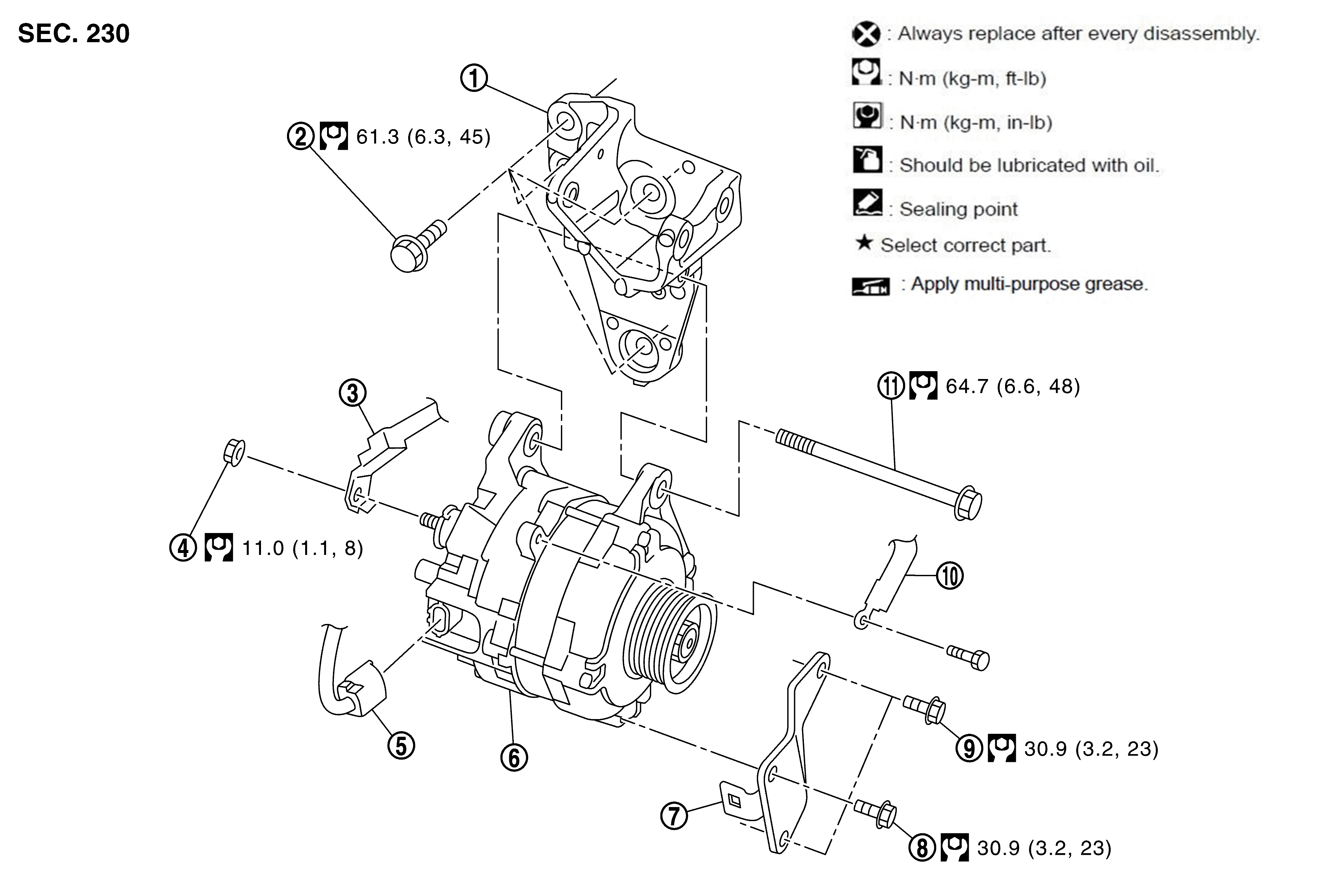

Fig 1: Alternator With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Alternator bracket	2.	Alternator bracket mounting bolt	3.	"B" terminal harness
4.	"B" terminal nut	5.	Alternator connector	6.	Alternator
7.	Alternator stay	8.	Alternator mounting bolt (lower)	9.	Alternator stay mounting bolt
10.	Ground harness	11.	Alternator mounting bolt (upper)
	: N.m (kg-m, ft-lb)

DISASSEMBLY

Type: A002TV2891

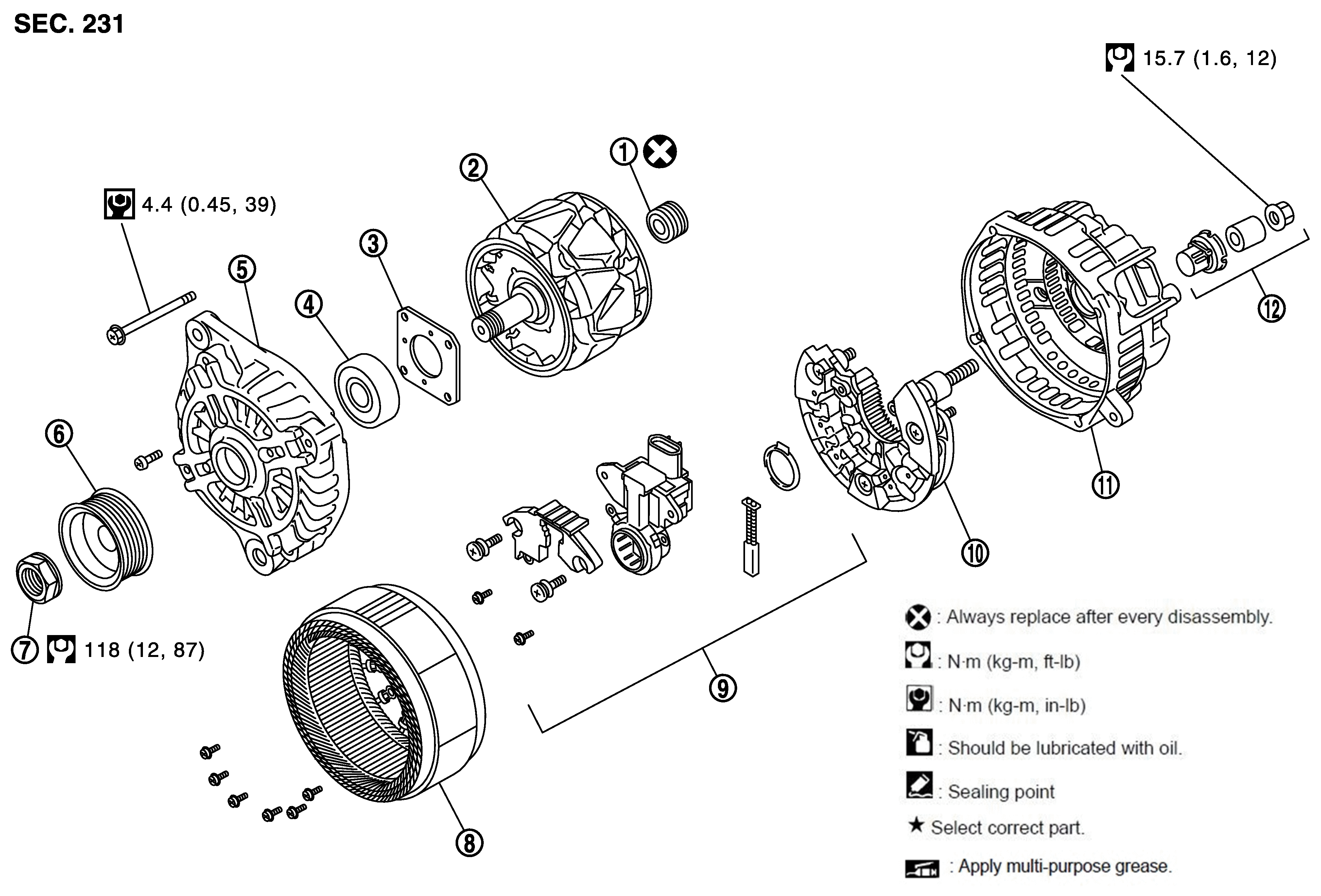

Fig 2: Alternator With Torque Specifications - Disassembly

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear bearing	2.	Rotor assembly	3.	Retainer
4.	Front bearing	5.	Front bracket assembly	6.	Pulley
7.	Pulley nut	8.	Stator assembly	9.	IC voltage regulator assembly
10.	Diode assembly	11.	Rear bracket assembly	12.	Terminal set
	: Always replace after every disassembly.
	: N.m (kg-m, ft-lb)
	: N.m (kg-m, in-lb)
