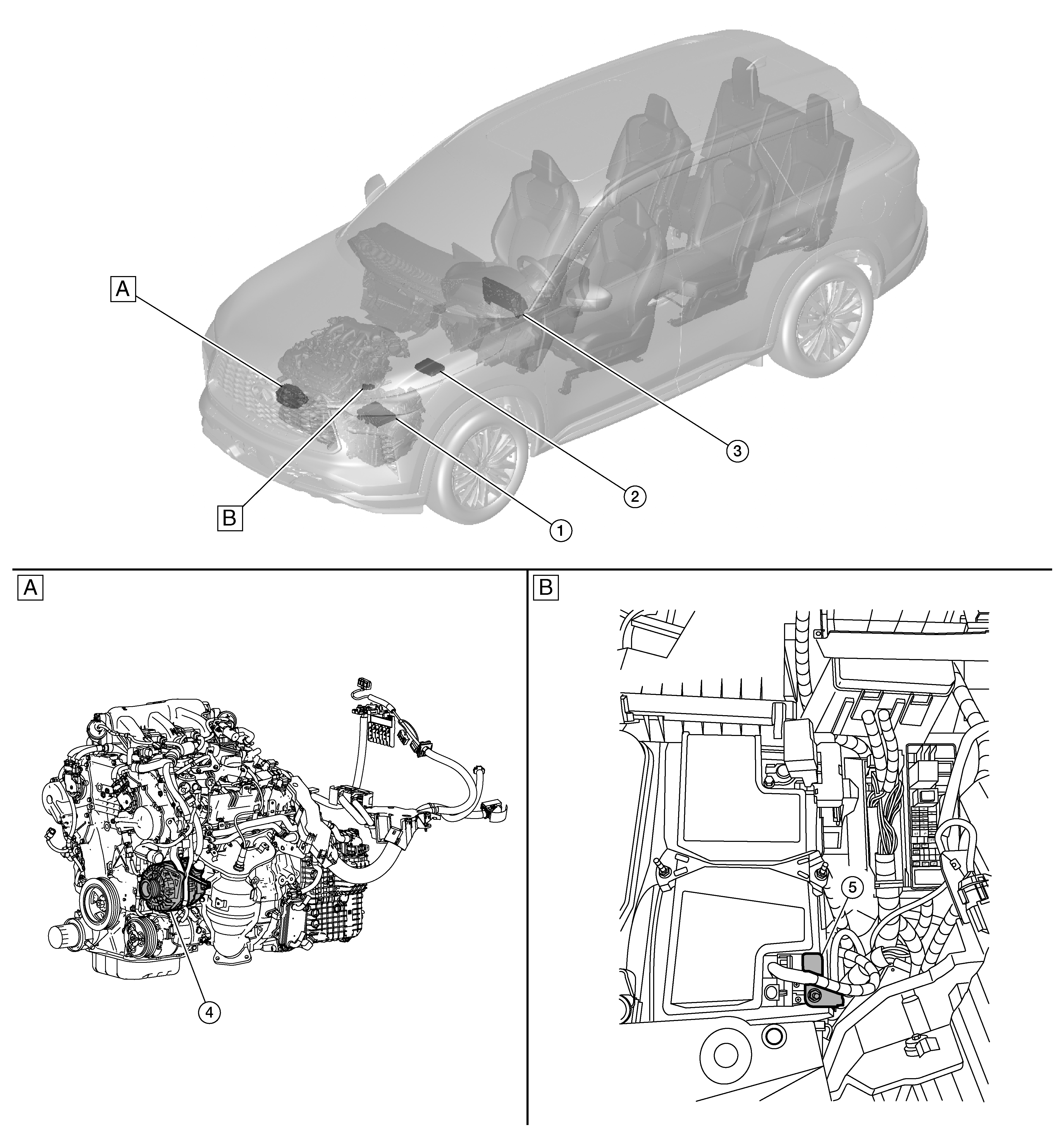

| 1. |
ECM (Engine Control Module) |
ECM transmits the received generator voltage request signal to the generator via LIN communication signal. Refer to Component
Location for detailed component location. |
| 2. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
IPDM E/R sends the generator voltage request signal to ECM via CAN communication. Refer to
System Description
. |
| 3. |
Combination meter |
The control module inside generator warning function activates to illuminate the charge warning lamp if any of the following symptoms occur while generator is operating:
- Excessive voltage is produced
- No voltage is produced
Refer to Component Location
(full TFT meter) or Component Location
(7 inch information display meter) for detailed component location. |
| 4. |
Generator |
Refer to Generator . |
| 5. |
Battery current sensor |
Refer to Battery Current Sensor . |
