System Description
- Brake force distribution function helps provide a more stable and secure feeling.

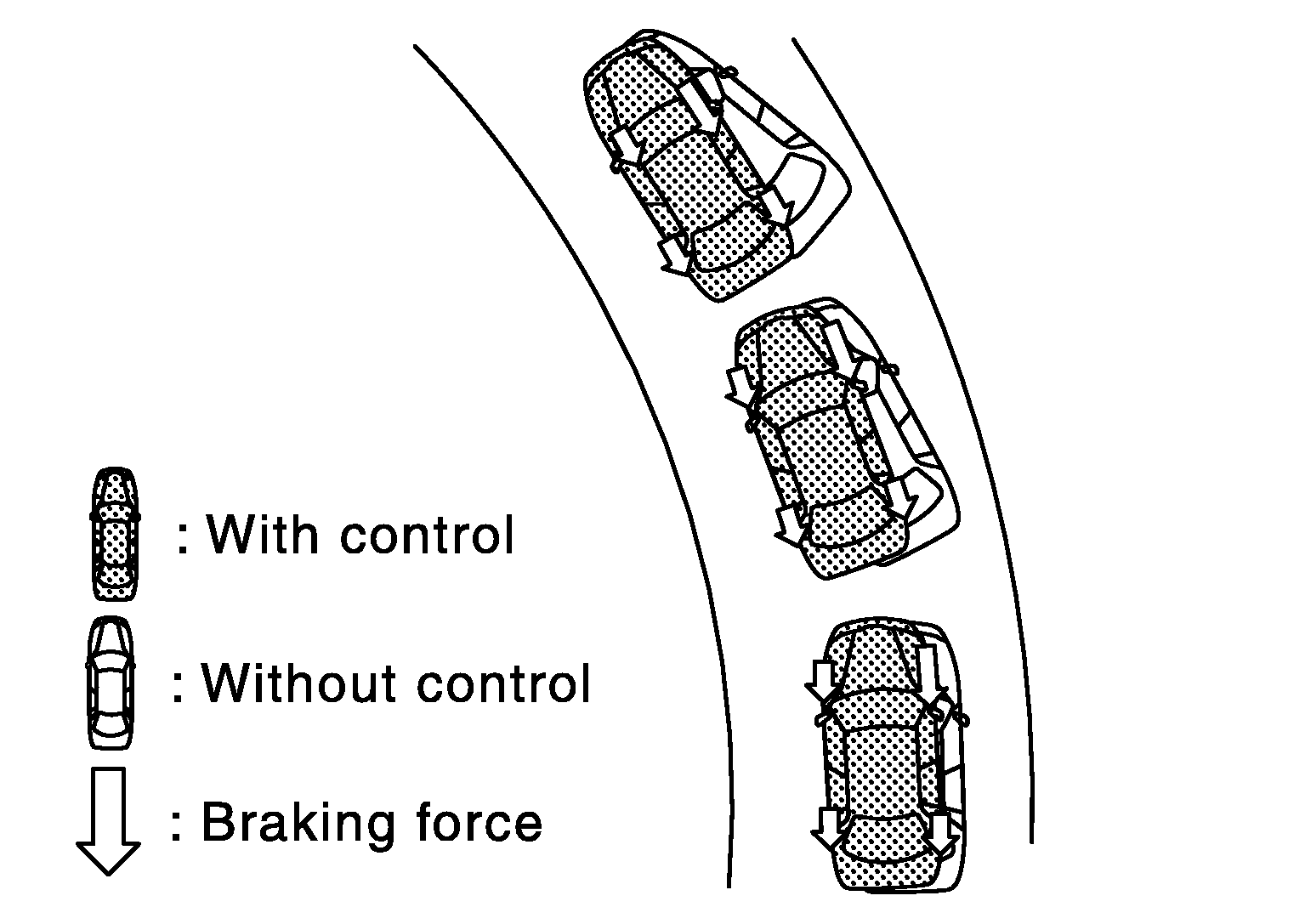

- During cornering, when brake operation is performed brake fluid pressure of each wheel is controlled based on steering operation amount by the driver and vehicle cornering status amount detected by each sensor.
- Fail-safe function is adopted. When a malfunction occurs in brake force distribution function, the control is suspended for VDC function, TCS function, brake assist function, brake force distribution function, and hill start assist function. The vehicle status becomes the same as models without VDC function, TCS function, brake assist function, brake force distribution function, and hill start assist function. However ABS function and EBD function are operated normally. Refer to Fail-Safe .
NOTE:
Brake force distribution function may not always be operates in all driving conditions.

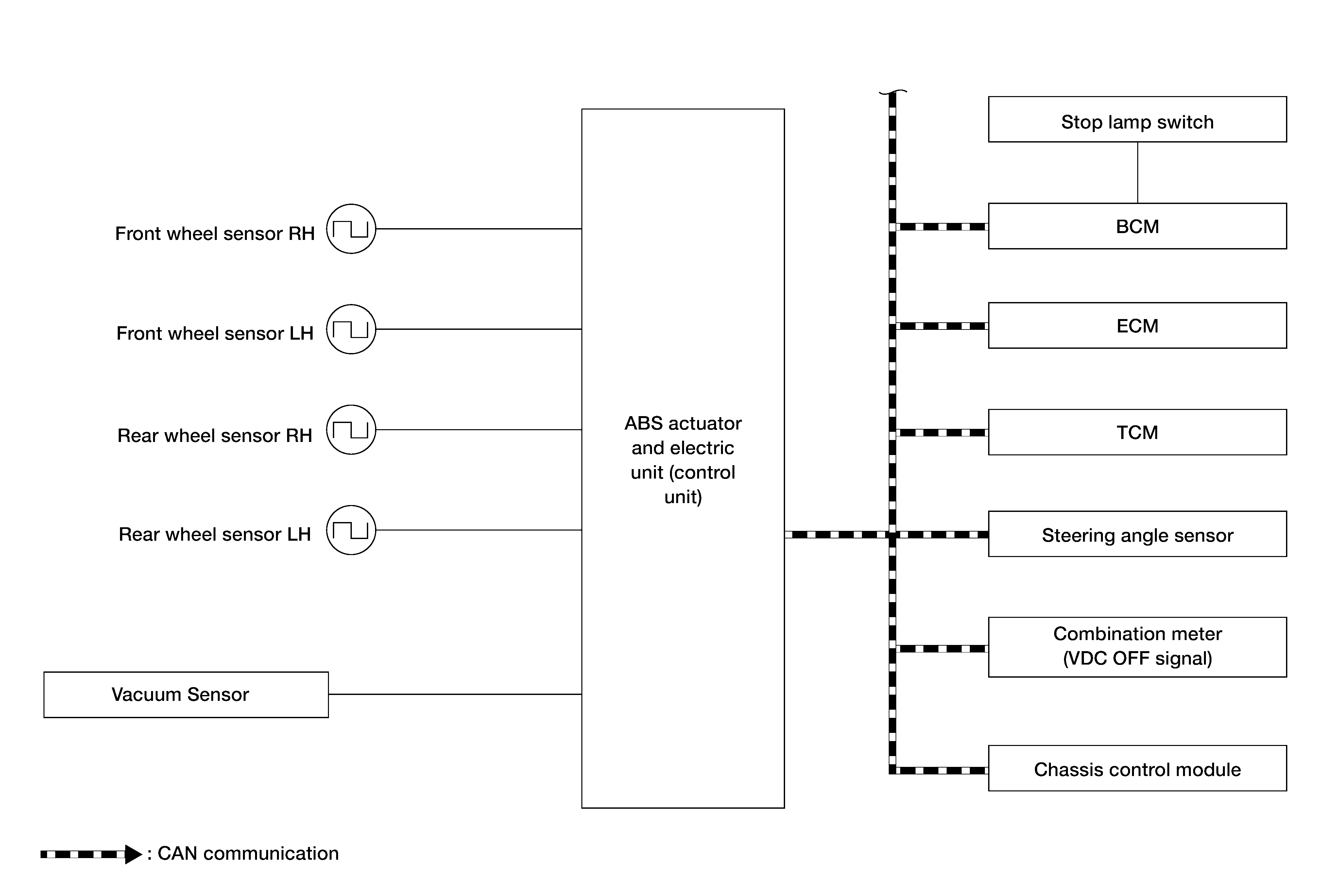

SYSTEM DIAGRAM
INPUT SIGNAL AND OUTPUT SIGNAL
Major signal transmission between each unit via communication lines is shown in the following table:
| Component | Signal description |
|---|---|
| ECM | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
|
| TCM | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
|
| BCM | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:
|
| IPDM E/R | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
|
| Steering angle sensor | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
|
| Combination meter | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:
|
