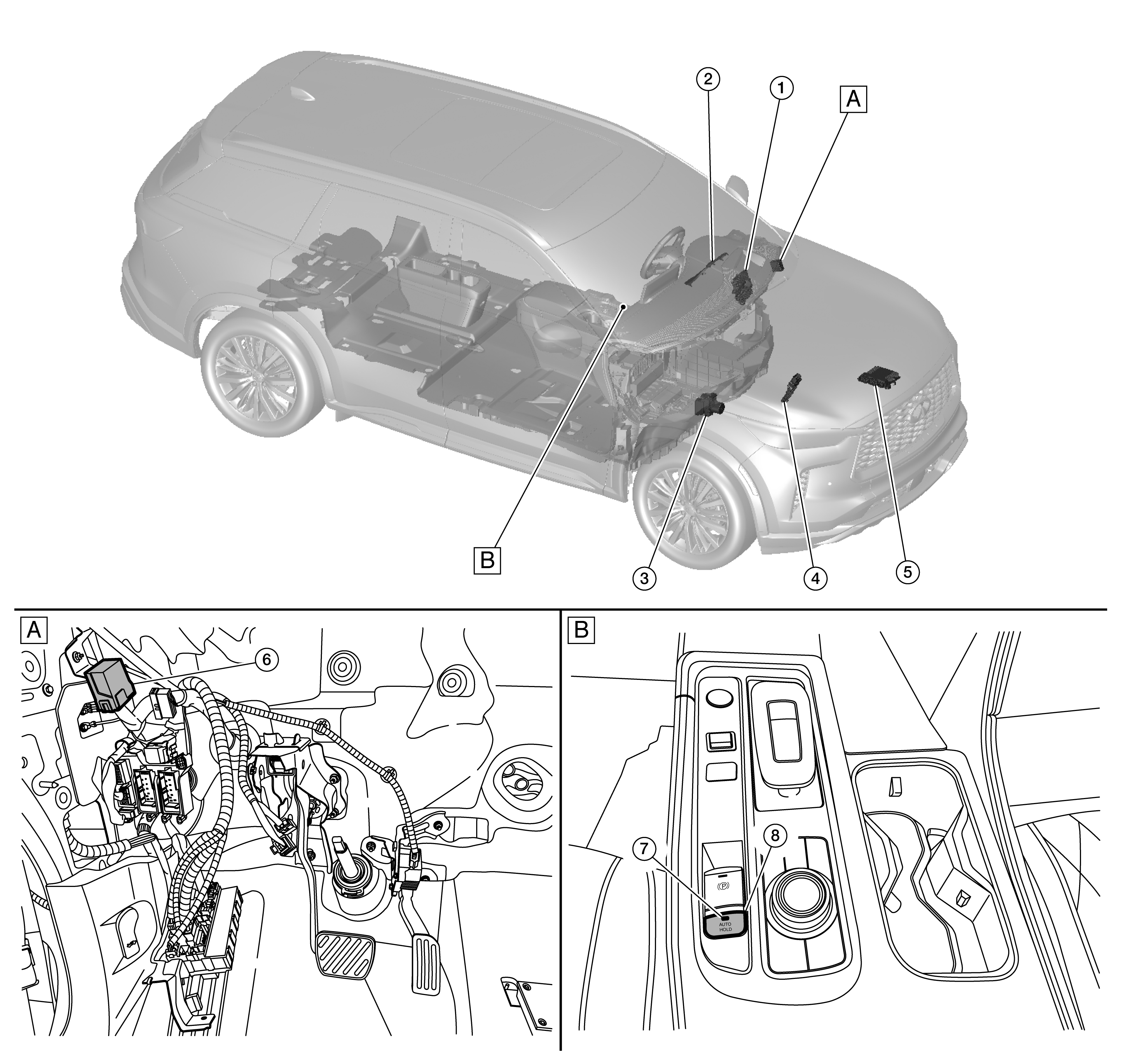

| 1. |
BCM. Refer to
Component Location
for detailed installation location. |
2. |
Combination meter. Refer to
Component Location
(full TFT meter), Component Location
(7 inch information display) for detailed installation location. |
3. |
ABS actuator and electric unit (control unit). Refer to
Component Location
for detailed installation location. |
| 4. |
TCM. Refer to
Component Location
for detailed installation location. |
5. |
ECM. Refer to
Component Location
for detailed installation location. |
6. |
Chassis control module |
| 7. |
Automatic brake hold switch indicator |
8. |
Parking brake switch (automatic brake hold switch) |
