System Description

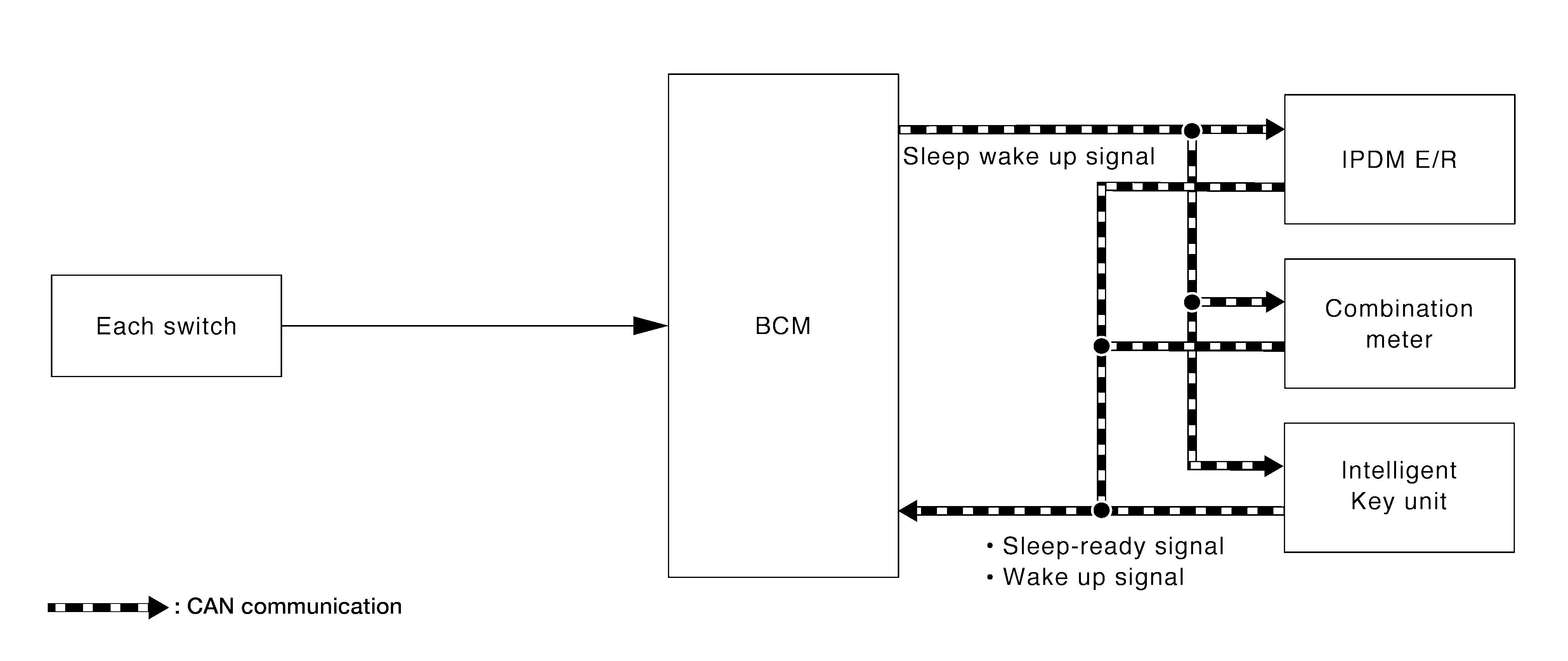

SYSTEM DIAGRAM
Description
- Intelligent Key unit incorporates a power consumption control function that reduces the power consumption according to the vehicle status.
- Intelligent Key unit changes its status (control mode) with the sleep wake up signal received from BCM via CAN communication.
Normal mode (wake-up)
- CAN communication is normally performed with other control units.
- Individual unit control by Intelligent Key unit is normally performed.
Low power consumption mode (sleep)
- Low power consumption control is active.
- CAN transmission is stopped.
Sleep Mode Activation
- Intelligent Key unit judges that the sleep-ready conditions are fulfilled when the ignition switch is OFF and none of the conditions below are present. Then it transmits a sleep-ready signal (ready) to BCM via CAN communication.
- Outputting signals to actuators
- Output requests are being received from control units via CAN communication.
- Intelligent Key unit stops CAN communication and enters the low power consumption mode when it receives a sleep wake up signal (sleep) from BCM and the sleep-ready conditions are fulfilled.
Wake-Up Operation
- Intelligent Key unit changes from the low power consumption mode to the normal mode when it receives a sleep wake-up signal (wake up) from BCM or any of the following conditions is fulfilled. In addition, it transmits a sleep-ready signal (not-ready) to BCM via CAN communication to report the CAN communication start.
- Ignition switch ON
- Push-button ignition switch status changes.
- Each door touch sensor status changes.
- An output request is received from a control unit via CAN communication.
