Steering Column: Inspection

HOLE COVER SEAL, HOLE COVER AND LOWER SHAFT

Check each part of hole cover seal, hole cover, steering column, and lower joint for damage or other malfunctions. Replace if necessary.

STEERING COLUMN

• Check each part of steering column for damage or other malfunctions. Replace entire steering column if any parts are damaged.
• Measure the length (L) as shown below, if vehicle has been involved in a minor collision. Replace steering column if outside the specifications.

  Courtesy of NISSAN NORTH AMERICA, INC.

  Steering column length (L)

  : Refer to Steering Column .

• Measure steering column rotating torque using suitable tool. Replace steering column if outside the standard.

  Rotating torque

  : Refer to Steering Column .

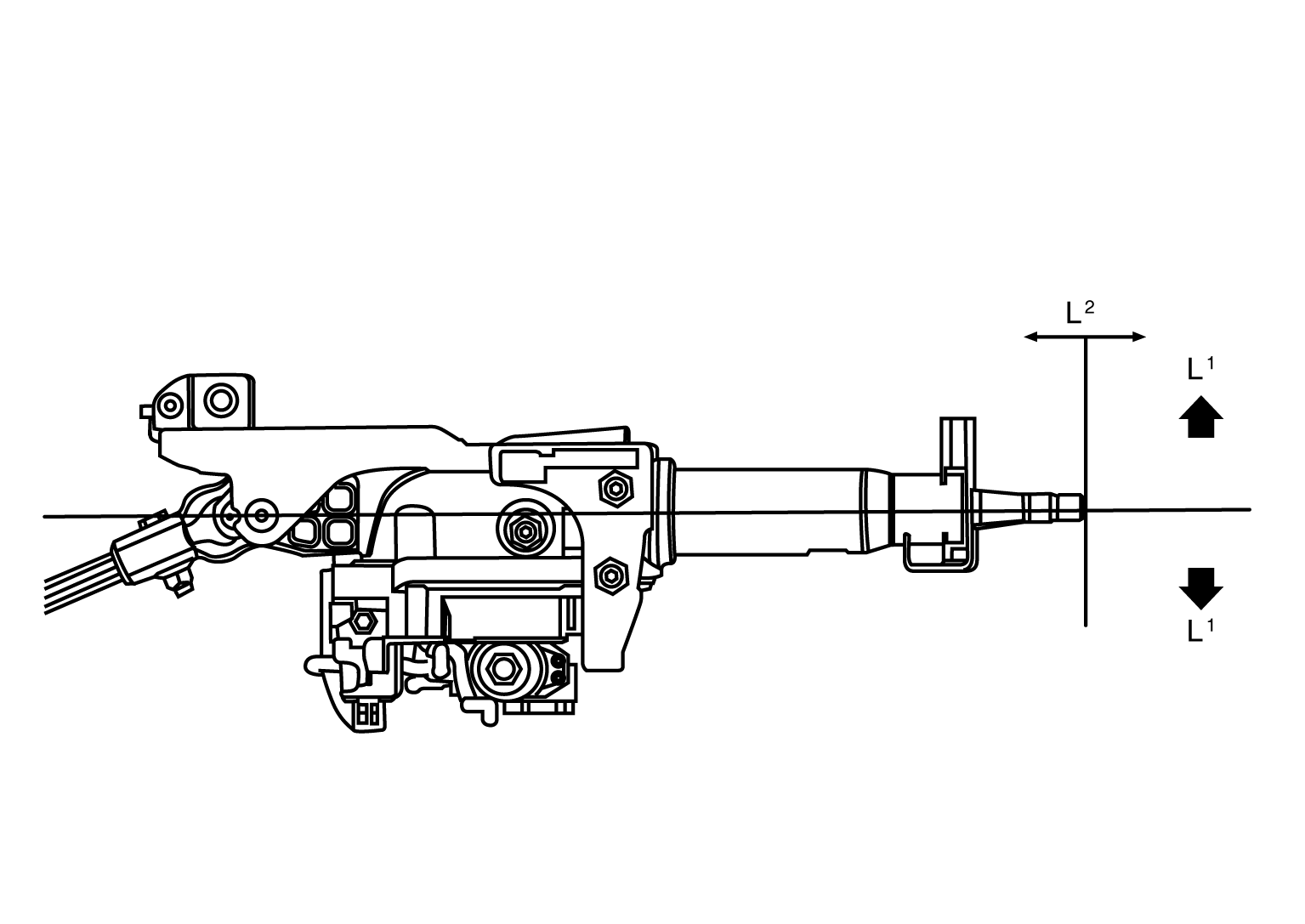

• Check tilt and telescopic mechanism operating range (L1), (L2) as shown, below.

  Courtesy of NISSAN NORTH AMERICA, INC.

  Tilt operating range (L1)	: Refer to Steering Column .
  Telescopic operating range (L2)	: Refer to Steering Column .
