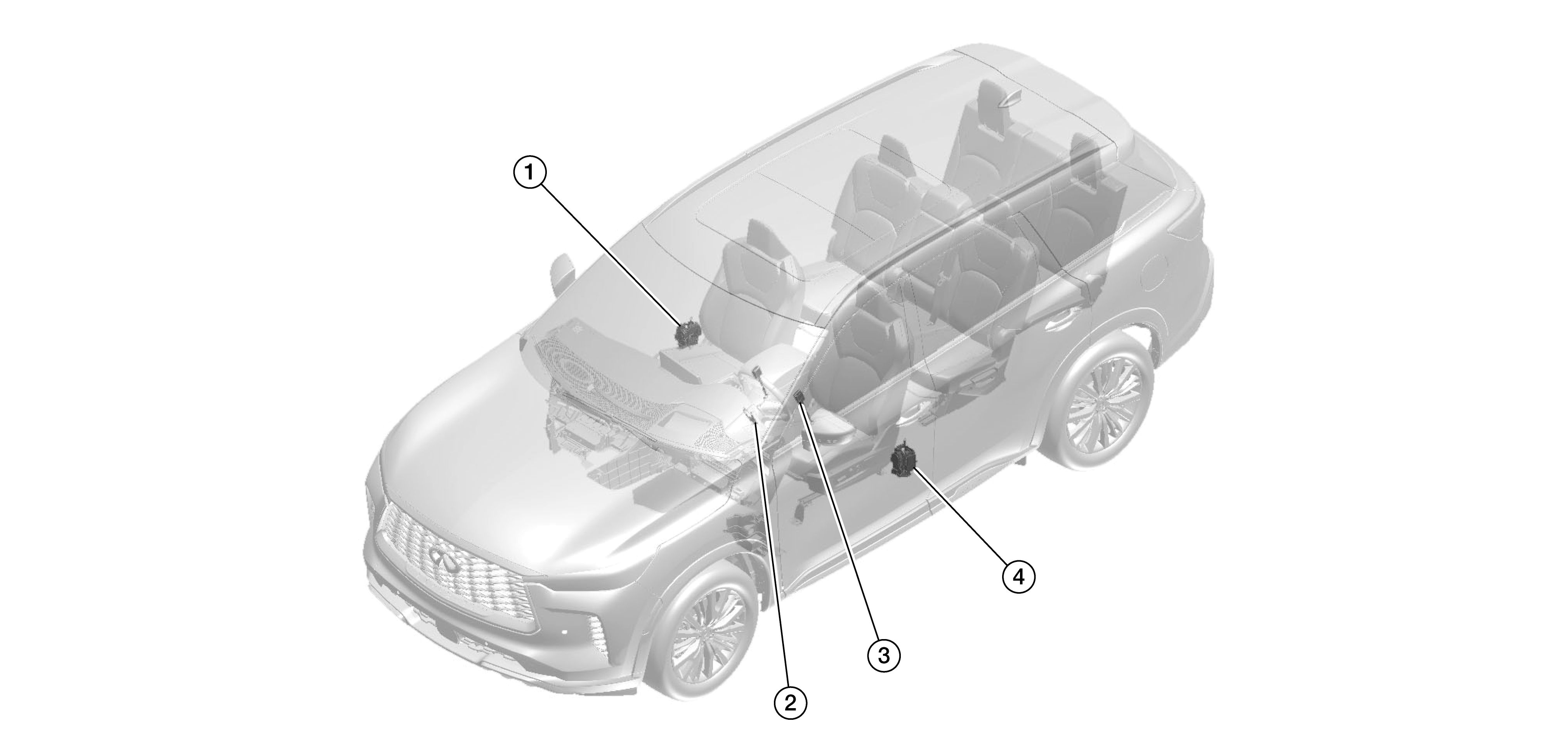

| 1. |
Pre-crash seat belt control unit RH |
- Integrated front seat belt pre-tensioner, control unit and seat belt motor.
- Is controlled by pre-crash seat belt control unit LH as master control unit.
- Seat belt motor operates when belt is extended and retracted.
Refer to Component Location
for detailed component location. |
| 2. |
Steering angle sensor |
The following signals are received from the steering angle sensor via CAN communication:
- steering angle sensor signal
- steering angle sensor speed signal
- steering angle sensor neutral position adjustment completion signal
- steering angle sensor malfunction signal
Refer to Component Location
for detailed component location. |
| 3. |
Front seat belt buckle switch LH (RH similar) |
Fastening of seat belt is judged. This signal is used for control of pre-crash seat belt system. Refer to
Component Location
for detailed component location. |
| 4. |
Pre-crash seat belt control unit LH |
- Integrated front seat belt pre-tensioner, control unit and seat belt motor.
- Controls pre-crash seat belt control unit RH as slave control unit.
- Seat belt motor operates when belt is extended and retracted.
Refer to Component Location
for detailed component location. |
