Exploded View
Exploded View

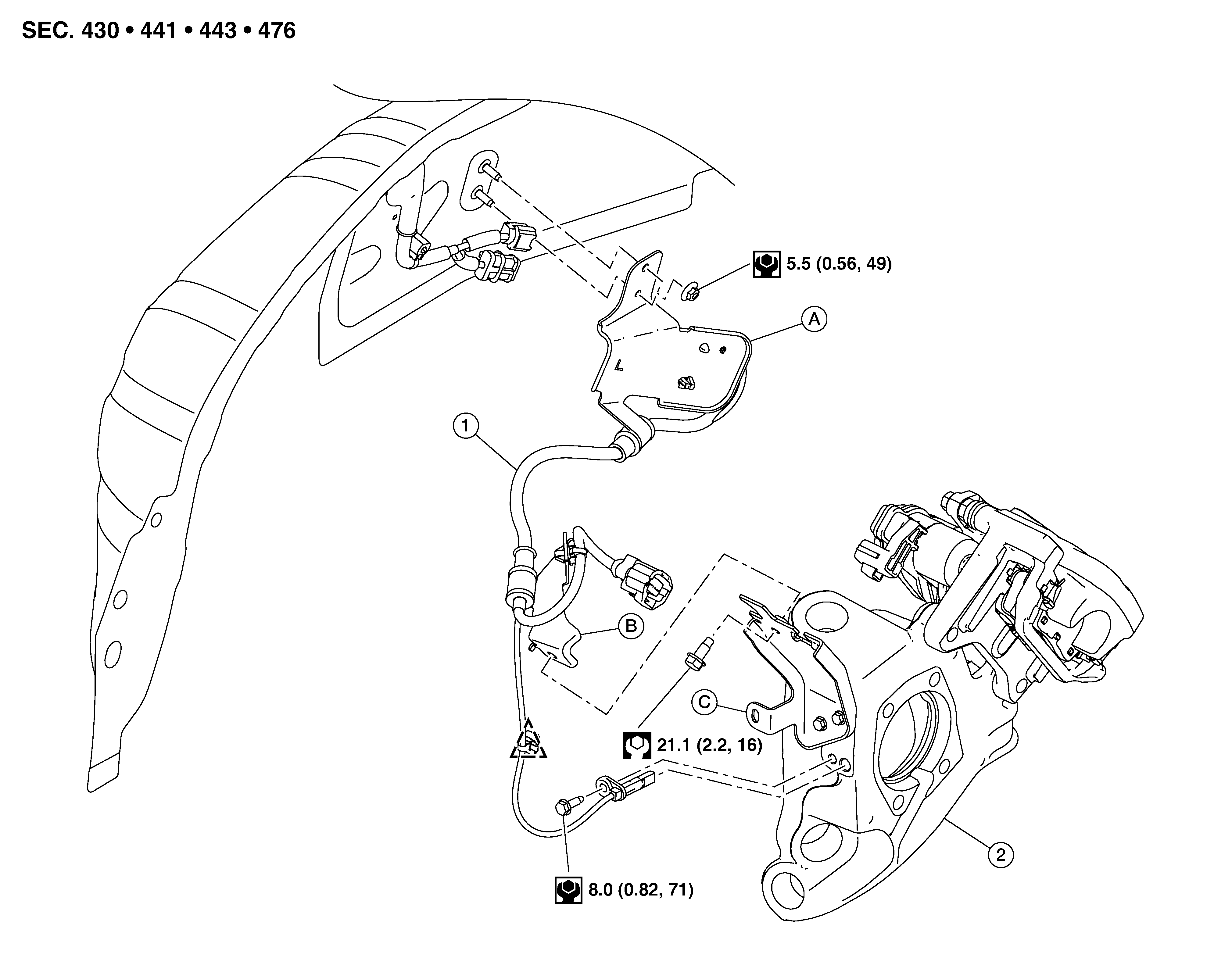

Fig 1: Rear Wheel Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Rear wheel sensor
2.
Rear knuckle
A.
Upper bracket
B.
Middle bracket
C.
Lower bracket
Clip
Courtesy of NISSAN NORTH AMERICA, INC.
