Chassis Control Warning
DESIGN/PURPOSE
The warning message is displayed on the information display when "Chassis Control" detected the system malfunction.
Warning Message
| Design | Warning Message |
|---|---|
| - | Chassis Control System Error. See Owner's Manual |
SYNCHRONIZATION WITH MASTER WARNING LAMP
Applicable
- Full TFT meter: Refer to Master Warning Lamp.
- 7 inch information display: Refer to Master Warning Lamp.
SYNCHRONIZATION WITH WARNING CHIME
Not applicable

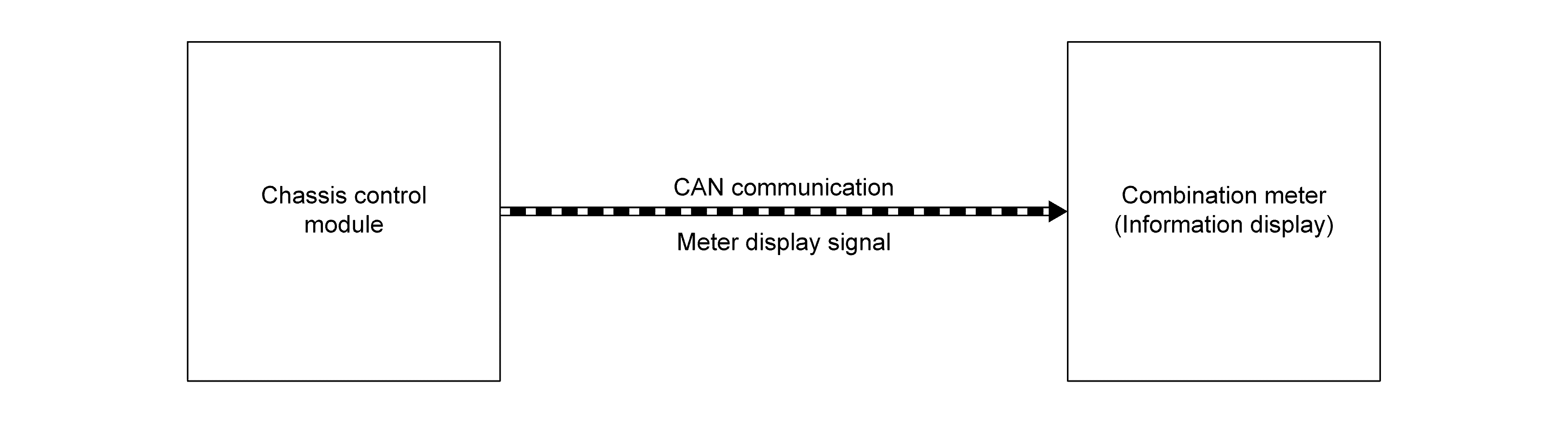

SYSTEM DIAGRAM
SIGNAL PATH
- The chassis control module transmits the meter display signal to the combination meter via CAN communication.
- The combination meter shows the chassis control warning on the information display, according to the signal.
WARNING MESSAGE DISPLAY CONDITION
When all of the following conditions are satisfied
- Ignition switch is ON
- Chassis control system malfunction is detected. Refer to DTC Index .
