System Description

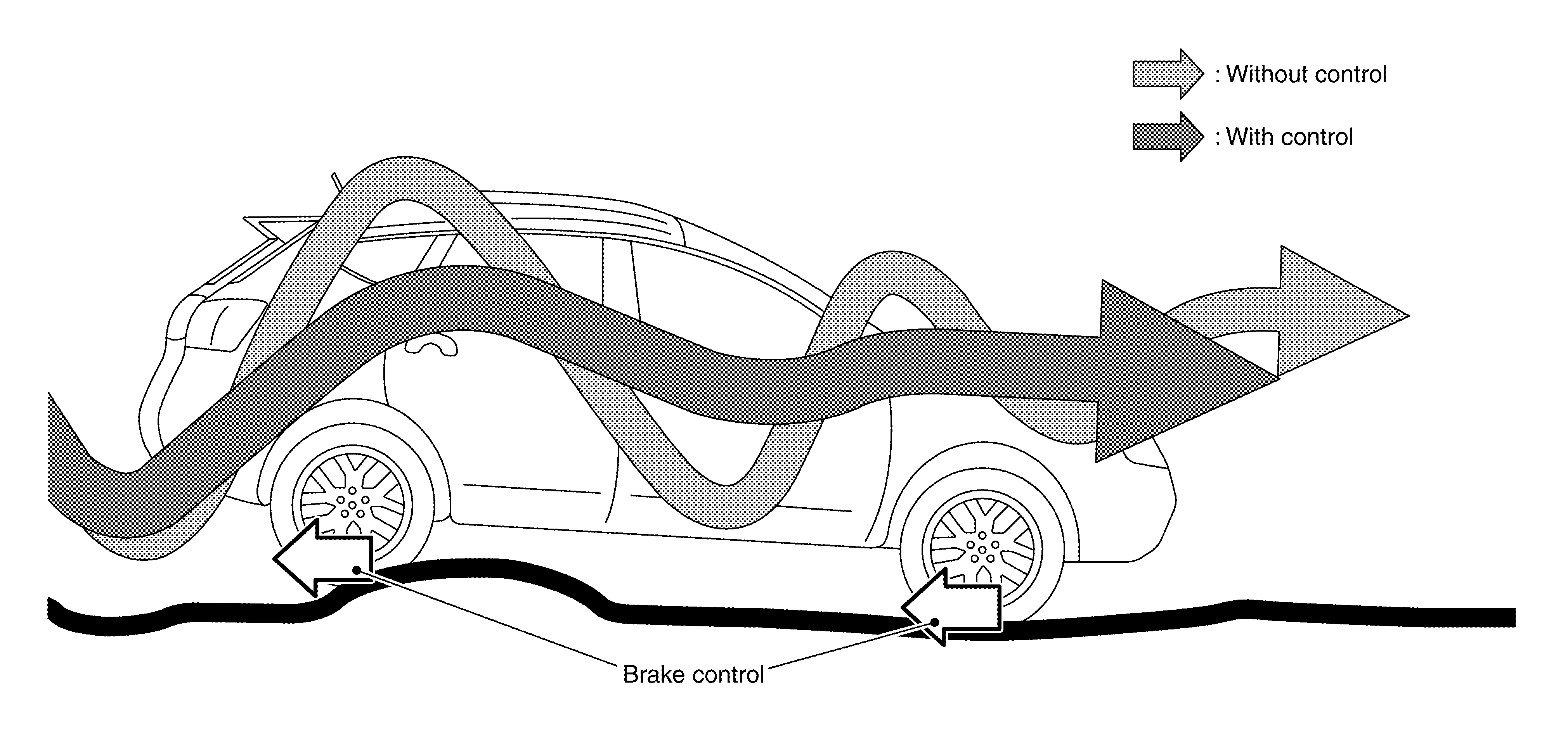

BRAKING CONTROL

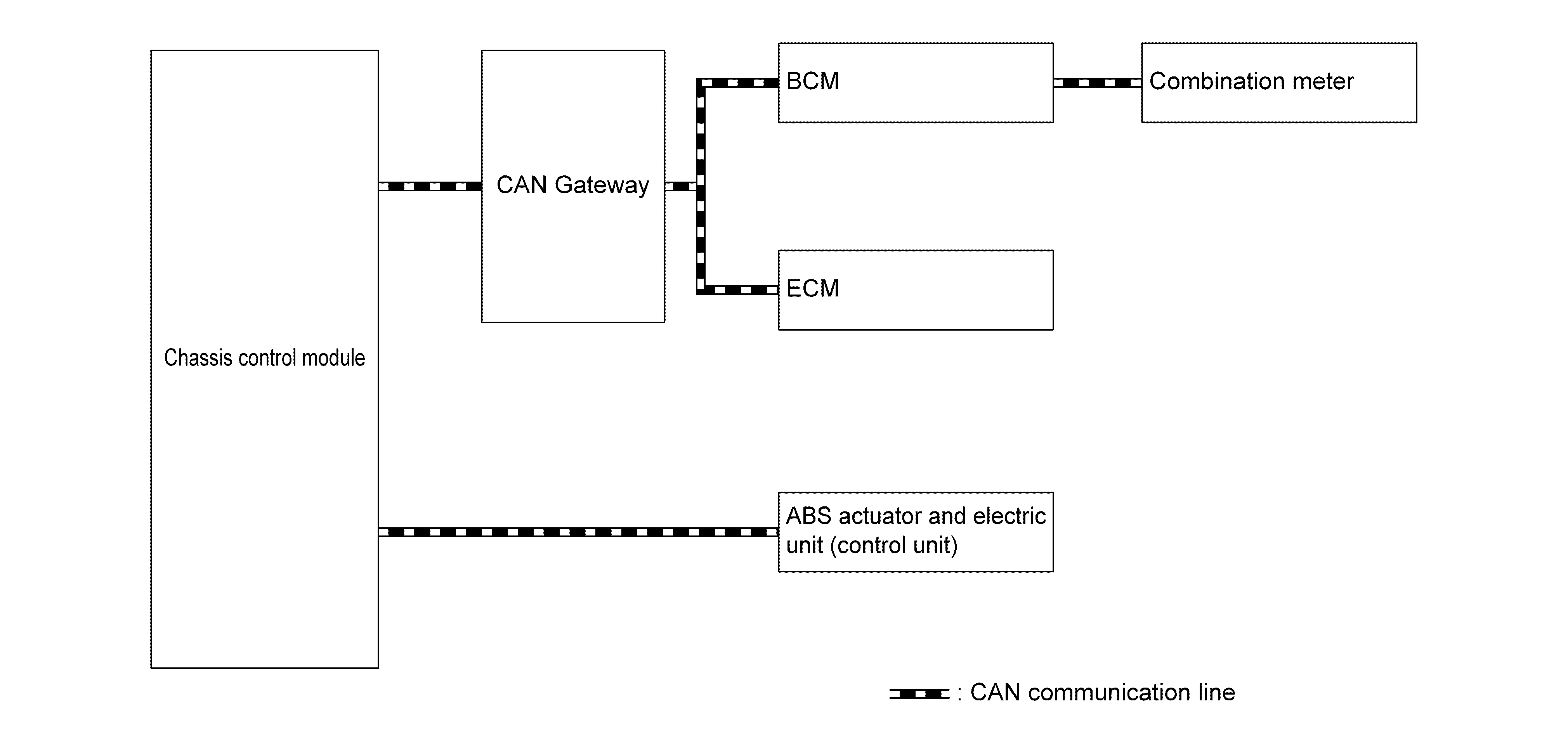

SYSTEM DIAGRAM

GNSDB137415Courtesy of NISSAN NORTH AMERICA, INC.

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

Component parts Signal description
ECM Mainly transmits the following signals to chassis control module via CAN communication.
  • Accelerator pedal position signal
ABS actuator and electric unit (control unit) Mainly transmits the following signals to chassis control module via CAN communication.
  • Front LH wheel speed signal
  • Front RH wheel speed signal
  • Rear LH wheel speed signal
  • Rear RH wheel speed signal
  • ABS operation signal
  • TCS operation signal
  • VDC operation signal
  • Vehicle speed signal
  • Decel G sensor signal
  • VDC OFF signal
  • Brake fluid pressure signal
  • VDC status signal
  • ABS malfunction signal
  • TCS malfunction signal
  • VDC malfunction signal

Mainly receives the following signals from chassis control module via CAN communication.
  • Brake torque request signal
Combination meter Mainly receives the following signals from chassis control module via CAN communication.
  • Meter display signal
