Removal and Installation

REMOVAL

Remove rear door finisher. Refer to Removal and Installation .

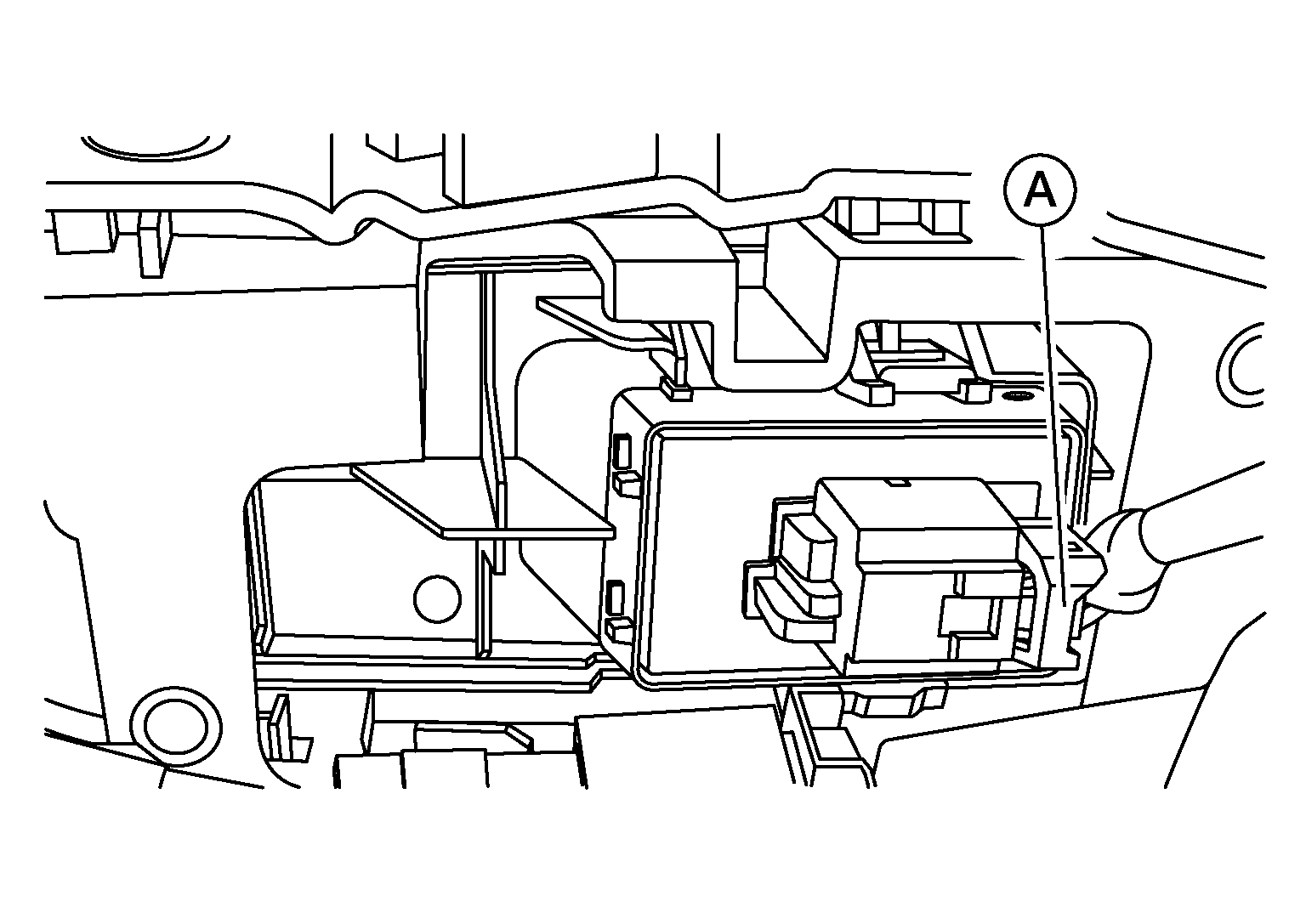

Disconnect the harness connector (A) from the rear power window switch.

Courtesy of NISSAN NORTH AMERICA, INC.

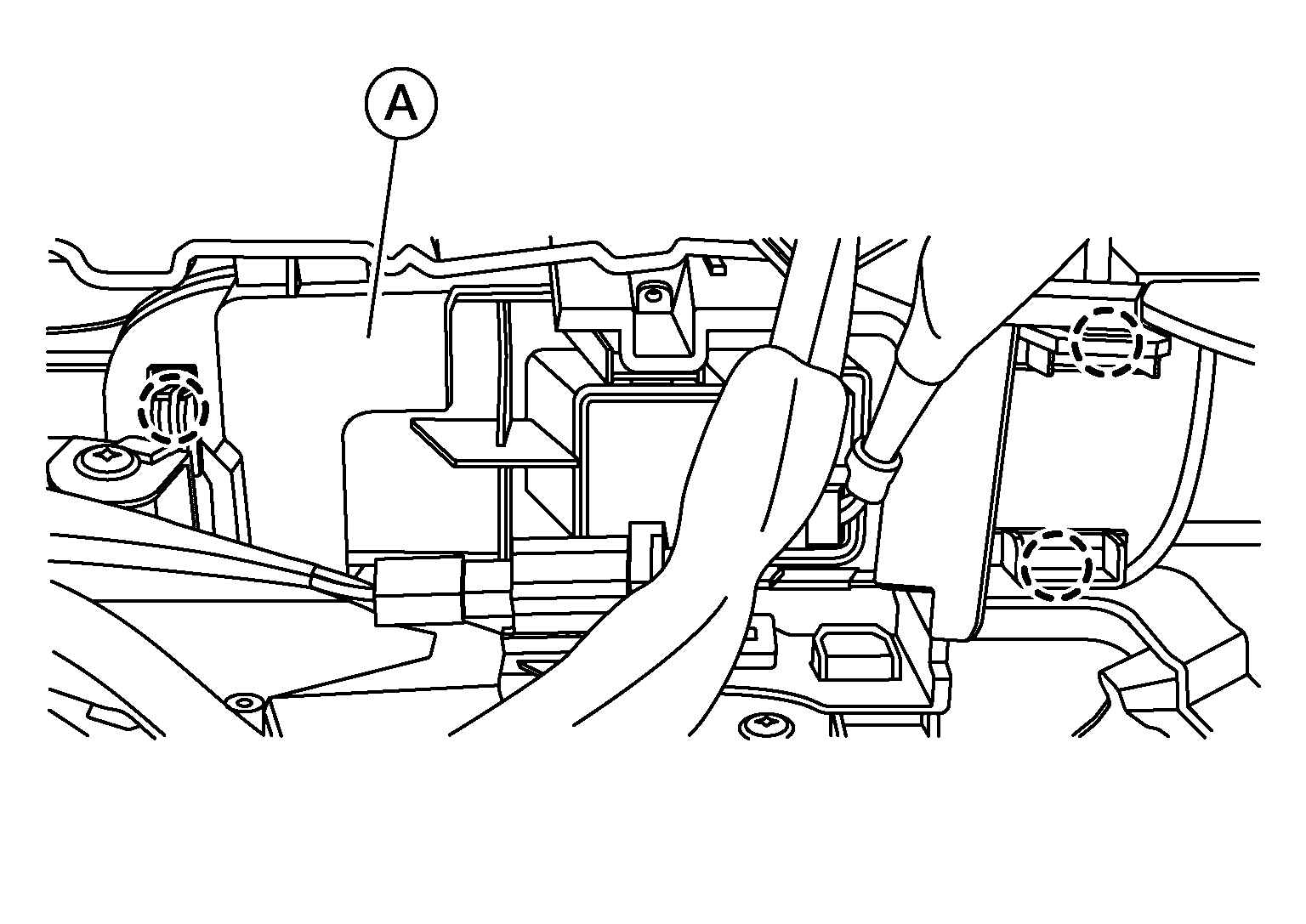

Release pawls and separate from rear door finisher (A).

Courtesy of NISSAN NORTH AMERICA, INC.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When the rear power window switch is removed or replaced, CHECK ANTI-PINCH FUNCTION. Refer to Description .
