Exploded View

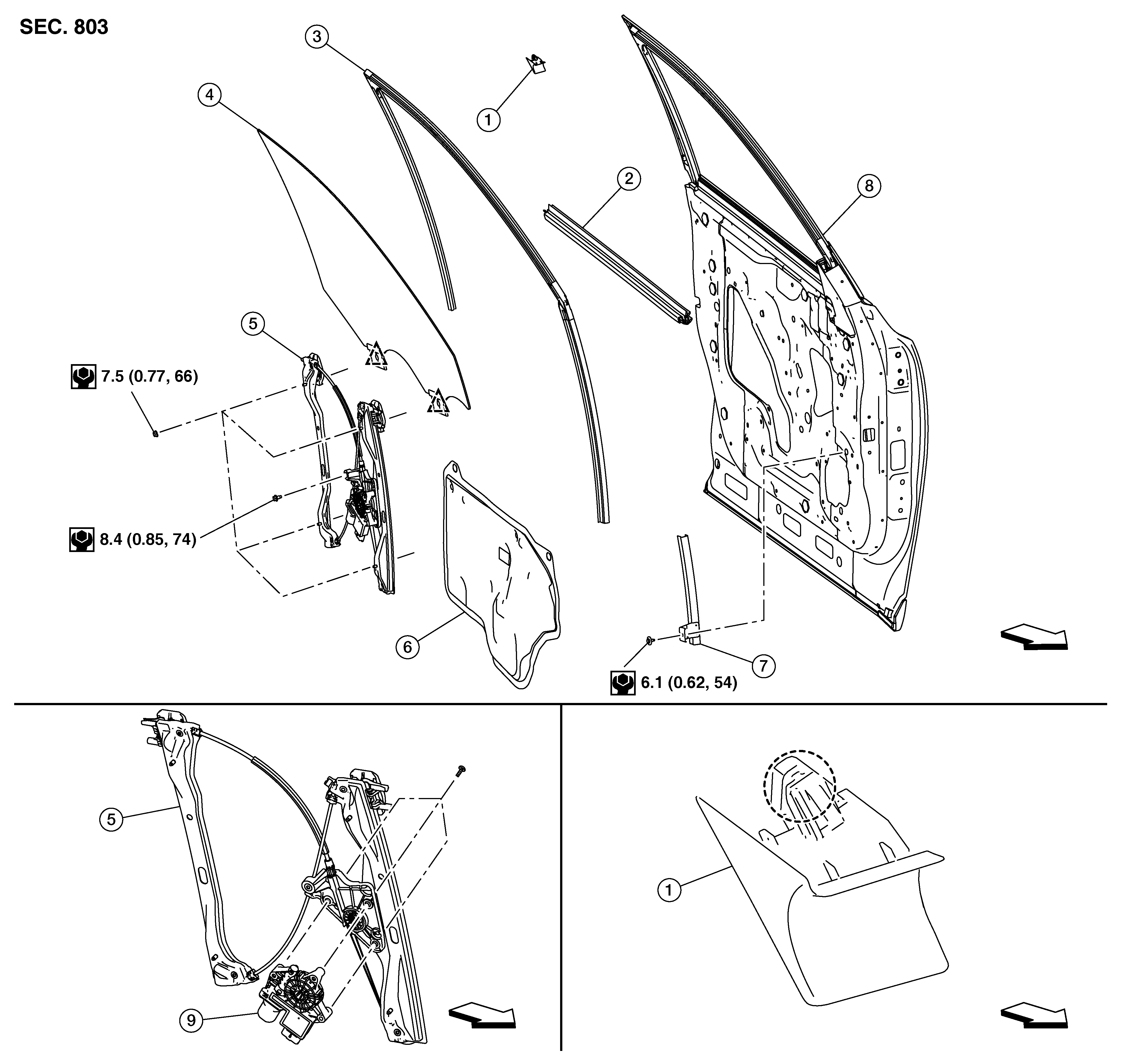

Fig 1: Front Door Regulator With Torque Specifications
GNSDB136560Courtesy of NISSAN NORTH AMERICA, INC.
1. Front door sash cover inner 2. Door inside seal 3. Door glass rubber run
4. Front door glass 5. Front door regulator 6. Vapor barrier
7. Door glass front run 8. Door panel 9. Front power window motor
SYMBOL Pawl SYMBOL Clip SYMBOL : Front
