Back Door Window Glass
>>

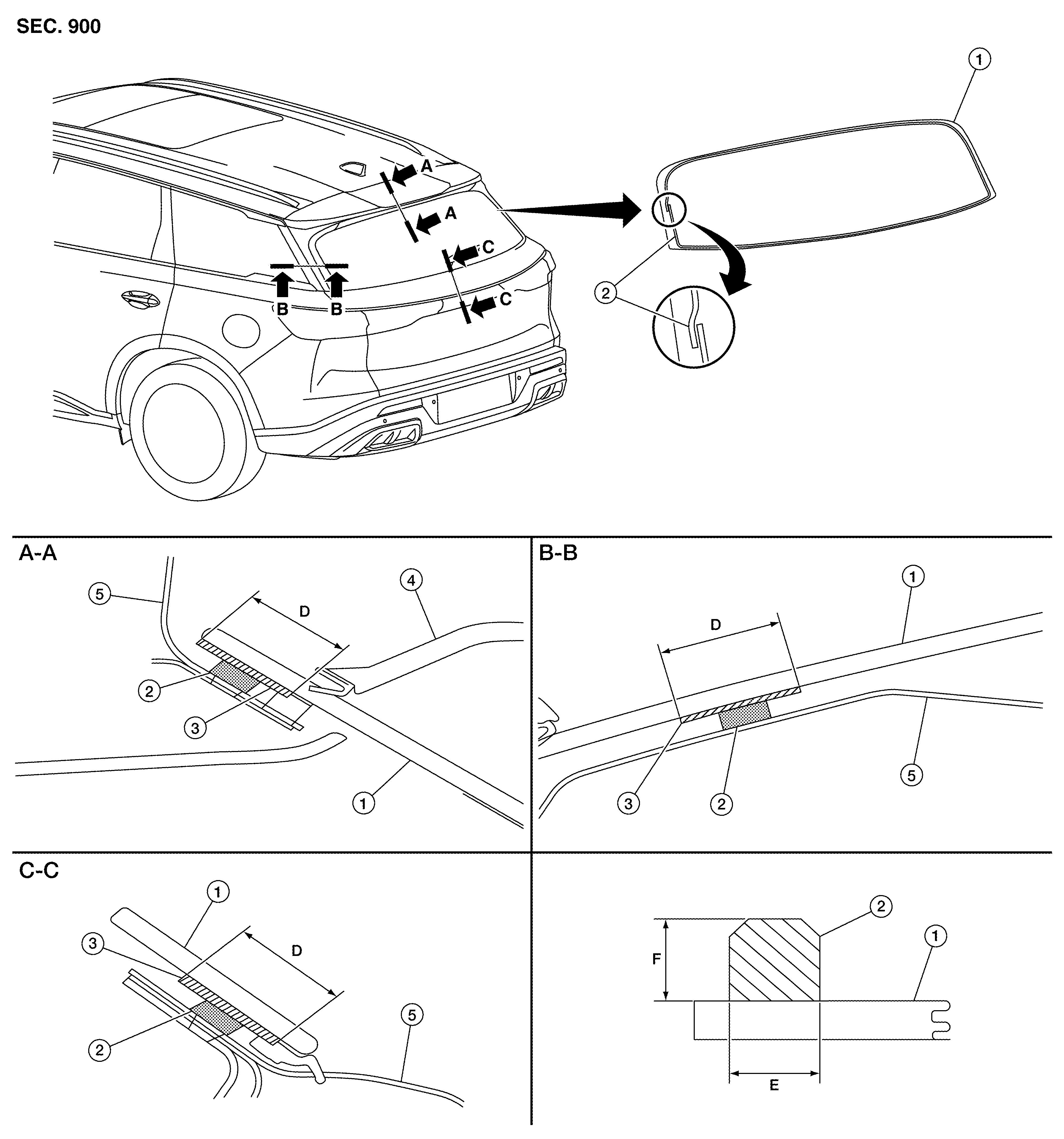

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Back door glass
2.
Adhesive
3.
Primer
4.
Rear spoiler
5.
Body side outer
D.
15 mm (0.59 in)
E.
7 mm (0.28 in)
F.
12 mm (0.47 in)
Courtesy of NISSAN NORTH AMERICA, INC.
